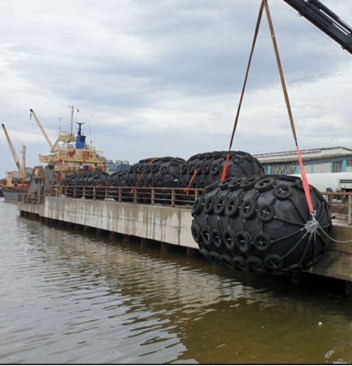

Ship Protection Marine Floating Fender

Ship Protection Marine Floating Fender
Ship Protection Marine Floating Fender Ship Protection Marine Floating Fender Ship Protection Marine Floating Fender

Large Image :  Ship Protection Marine Floating Fender

Product Details:
Place of Origin: Shandong, China
Brand Name: Jerryborg
Certification: ISO17357 BV CCS ABS GL LR DVN SGS KR RINA
Model Number: 2.5m*3.5m
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nude packing
Delivery Time: 10-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per year

Ship Protection Marine Floating Fender

Description
Material: Natural Rubber Initial Pressure: 50kpa 80kpa
Size: Customized Size Part: Tyre-chain Net,flange,fender
Certificate: CCS BV ISO17357 ABS GL LR DVN SGS KR RINA Color: Black, Grey, Creamy White, Etc
Warranty: 24 Months Product Name: Inflatable Boat Fender, Dock Fender, Ship Bumper
High Light:

Yokohama Marine Floating Fender

,

50kpa Marine Floating Fender

,

80kpa Marine Floating Fender

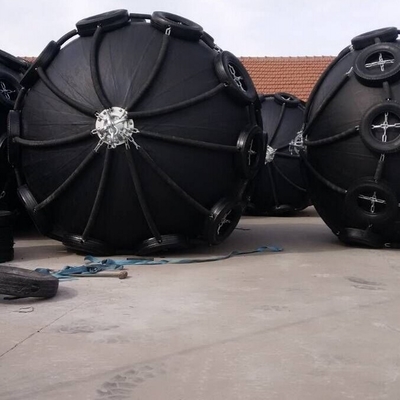

Ship Protection Marine Floating Pneumatic Rubber Fender With Chain And Tire Net





Floating Pneumatic Rubber Fender



Floating pneumatic rubber fender, also called Yokohama fender, has been used in port, harbor, and maritime operations for decades since it was developed in 1958. With the development of ship technology, this Floating pneumatic rubber fender is used extensively in ship-to-ship transfer operations and ship mooring and berthing operations. It’s always regarded as a buffer to reduce shock in between due to its excellent performance of great elasticity and abrasion-resistance.



Floating pneumatic rubber fenders are divided into three types, including sling type, hydro-pneumatic type, and chain and tire net type. Each type plays a critical role in protecting the safety of marine operations.



Fully compliant with the ISO17357 standard, Jerryborg’s floating pneumatic rubber fender supplies with a variety of specifications and dimensions to meet customer’s requests and different application conditions.





Floating Pneumatic Rubber Fender Structure



① Outer rubber layer

Floating pneumatic rubber fenders are covered by the outer layer made of natural rubber. This rubber compound is strong enough to protect the inner layer and synthetic-cord layer from the damage of external forces and severe weather conditions due to its high elasticity and abrasion resistance.



② Synthetic-tire-cord layer

The Synthetic-tire-cord layer is made of synthetic-tire-cord fabrics, compared with synthetic canvas fabric and synthetic belt fabric, this reinforcement layer performs better in fatigue-resistance and pressure-holding.



③ Inner rubber layer

The inner layer is designed to seal the air inside the fender.



floating fenders



Floating Pneumatic Rubber Fender Advantage



1. Safe and Reliable

Floating pneumatic rubber fender is made of several strong cord layers to enable it to be pressure-resistant and puncture-resistant. The floating pneumatic rubber fender whose diameter is over 2.5m is equipped with a safety valve to release the air inside in case it’s overpressured. The diagram below shows the data variations at different percentage compressions.

marine floating fender



2. Advantage under Severe Weather Conditions

Under normal circumstances, the ship movement caused by high and long-period waves or strong wind will bring repeated compression and shearing forces on the fender and make it easier to be fatigue and damage. However floating pneumatic rubber fender is strong enough to resist severe weather conditions, the reaction force increases slowly compared with solid fender and won’t easily reach the maximum.

marine floating fender

3.Shape Conformant at Inclined Compression

Floating pneumatic rubber fender is made of reinforced cord layers of high elasticity and flexibility, which enable it to make it shape conformant at inclined compression during ship-to-ship operations. Compared with solid fender and foam fender, the floating pneumatic rubber fender is easier to distribute the load along the ship's body or berthing structure.

marine floating fender



Floating Pneumatic Rubber Fender Application

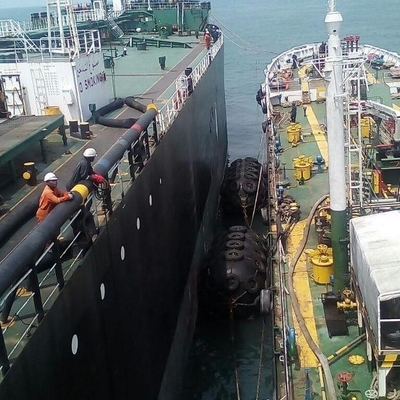

1. Ship-to-ship transfer operations



2. Ship-to-ship services



3. Offshore platform defense



4. Ship berthing at the dock



5. Hang on the ship hull





Specifications Of Floating Pneumatic Rubber Fender



Pneumatic 50 Standard Sizes:

Dimension Deflection (60%)
D (mm) L (mm)

Reaction Force

(KN)

Guaranteed Energy Absorption (KNm)
500 1000 64 6
600 1000 74 8
700 1000 137 17
1000 1500 182 32
1000 2000 257 45
1200 2000 297 63
1350 2500 427 102
1500 2500 499 134
1500 3000 579 153
1700 3000 639 191
2000 3500 875 308
2000 4000 1000 352
2500 4000 1381 663
2500 5500 2019 1131
3000 5000 2422 1357
3000 6000 2906 1293
3300 4500 1884 1175
3300 6500 3015 1814




Pneumatic 80 Standard Sizes:

Dimension Deflection (60%)
D (mm) L (mm)

Reaction Force

(KN)

Guaranteed Energy Absorption (KNm)
500 1000 84 9
600 1000 94 12
700 1000 179 25
1000 1500 236 47
1000 2000 337 66
1200 2000 386 89
1350 2500 554 143
1500 2500 630 179
1500 3000 756 215
1700 3000 829 262
2000 3500 1126 424
2000 4000 1453 740
2500 4000 1817 925
2500 5500 2653 1327
3000 5000 2689 1558
3000 6000 3275 1878
3300 4500 3476 1640
3300 6500 3829 2508



For further information free to contact us.
