Product Details:
|
| Material: | Natural Rubber | Color: | Black |
|---|---|---|---|
| Size: | Customized Size | Part: | Inflatable Tool,pull Ring |
| Shape: | Cylindrical Body | Certificate: | CCS,BV,LR,UKAS,ABS,ANAB |
| Warranty: | 24 Months | ||
| High Light: | CCS Floating Marine Airbag,15m Boat Recovery Airbags,15m Heavy Lifting Airbags |
||
Portable Heavy Lifting Airbag Natural Rubber Balloon With Good Airtightness

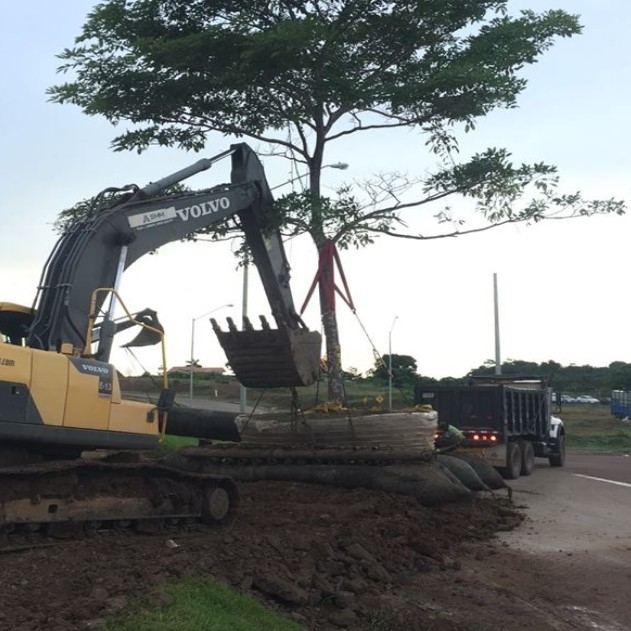

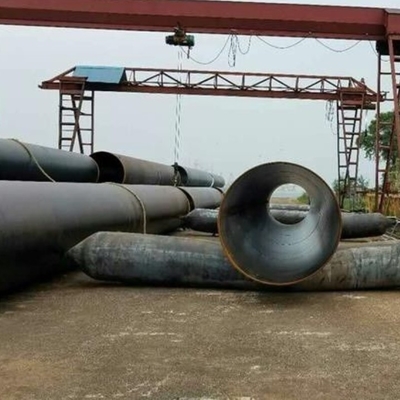

Portable heavy lifting airbag, also named roller bags or ship launching rubber balloon, was first invented for ship launching in 1981 in Jinan city of Shandong Province. Portable heavy lifting airbags are accepted by more and more shipyards worldwide due to their advantage of saving labor cost and time, besides it’s easy to install and replace. Portable heavy lifting airbags are widely used in ship launching, ship salvage, and other heavy weights lifting and moving.
Portable heavy lifting airbags are composed of inner reinforced synthetic-tire-cord layers and outer rubber layers in the shape of cylindrical. Which is capable of high capacity against compression and twisting. Jerryborg supplies various sizes of portable heavy lifting airbags depending on the customer’s request.
Portable Heavy Lifting Airbag Application
Constructions Of Portable Heavy Lifting Airbag
Portable Heavy Lifting Airbag Advantages
Portable Heavy Lifting Airbag Specification
| Series | Model | Diameter(m) | Working Pressure(Mpa) | Working Height(m) | Beating Capacity(Ton/m) | ||||
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D | ||||
| S1 |
S10 |
0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 | ||
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 | ||
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 | ||
| S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 | |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 | ||
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 | ||
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 | ||
| S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 | |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 | ||
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 | ||
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 | ||
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 | ||
| S2 | S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 | ||
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 | ||
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 | ||
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 | ||
| S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 | |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 | ||
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 | ||
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 | ||
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 | ||
| S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 | |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 | ||
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 | ||
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 | ||
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 | ||
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 | ||
| S3 | S30 | 1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 | ||
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 | ||
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 | ||
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 | ||
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0 | ||
