12 Inch Marine Oil Hose

12 Inch Marine STS Dock Oil Hose Natural Rubber Hose To Delivery Crude Oil

STS Dock Oil Hose

STS dock oil hoses, which means ship to ship hose is designed for transferring crude oil, petroleum products of cargoes between vessels and oil tankers. Fully compliant with OCIMF standards, our STS dock oil hoses are able to withstand abrasion and bending forces and still perform excellently at low temperatures. Furthermore, the risk of leakage or bulge is absent.

STS dock oil hoses mainly consist of inner tube, reinforcement, and cover layer. The cover layer protects the hose body from the damage of the external corrosive environment. Reinforcement is made of high tensile strength fabrics with helix steel wire which makes sure that there won’t be any cracks at a high bending angle. The inner tube is made of synthetic rubber or thermoplastic material which is resistant to oil and fuel.

STS Dock Oil Hose Advantages

Fully compliant with ISO9001, STS dock oil hose is popular with the oil industry due to its excellent performance.

• Flexible and durable
• Resistant to abrasion,UV,aging,corrosion,low temperature
• Prevent water absorption
• Perform well under high pressure
• Withstand the crushing and bending force
• Bear powerful tension and torsion force
• Easy to install and maintain

Applications Of STS Dock Oil Hose

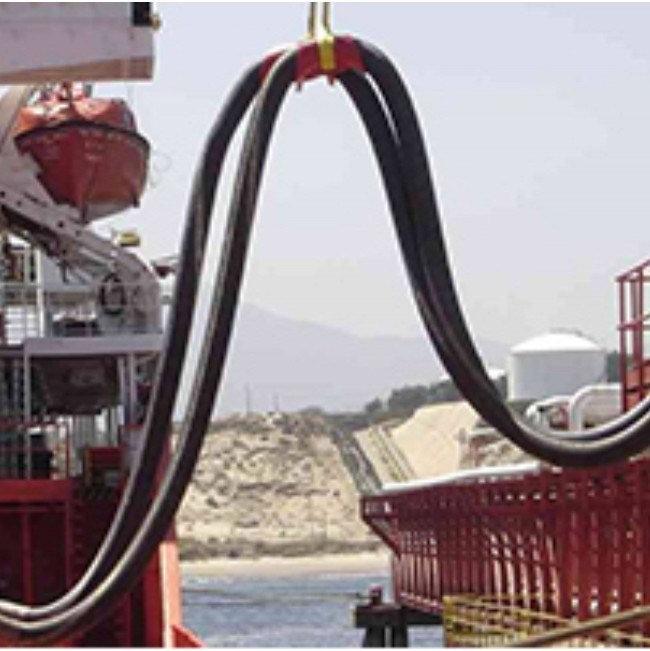

STS dock oil hoses are widely used in transferring petroleum, crude oil, and vapours between vessels and oil tankers.

STS Dock Oil Hose Basic Construction

1. Inner tube: Synthetic rubber or thermoplastic material (NBR) with features of smooth and resistance to oil and fuel
2. Reinforcement layer: High tensile polyester fabric with stainless steel helix embedded
3. Cover layer: CR compound rubber resistant to abrasion, seawater, and sunlight
4. Body wire: Steel wire
5. Flange :ASTM A-105 (Max. Carbon 0.25%) , ASME B16.5

STS Dock Oil Hose Specifications

1. Minimum bending radius: 4 × Nominal Diameter

2. Allowable flow velocity : 21 m/sec (70 ft/sec)

3. Fluid: Crude Oil, Liquid Petroleum Products

Here are the dimensions available as below :

For further information free to contact us.
