Product Details:
|
| Initial Pressure: | 50kpa 80kpa | Accessories: | Tyre-chain Net,flange,fender |
|---|---|---|---|
| Color: | Black,grey,creamy White,etc | Material: | Natural Rubber |
| Warranty: | 24 Months | Diameter: | 0.5m~4.5m |
| Length: | 1.0m~12.0m | Type: | Evergreen Maritime Type |
| Highlight: | 50Kpa Yokohama fender,50Kpa pneumatic fender,50KPa floating fender |
||
Ship Bumpers Inflatable Marine Rubber Fender For Ship Berthing And Mooring
Inflatable Marine Rubber Fender

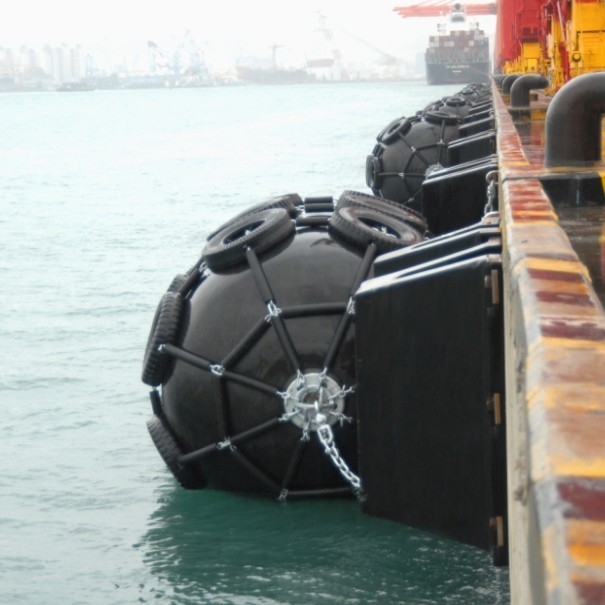

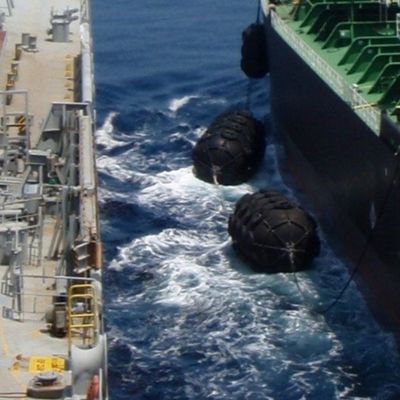

Inflatable marine rubber fenders are widely used for ship-to-ship transfer, double banking, and ship-to-dock berths. They are preferably used in ports where the tides vary greatly. Jerryborg's inflatable marine rubber fenders can be easily deflated, enabling simple and cost-effective relocation, providing protection in the dock and ship-to-ship mooring scenarios. We offer products in various sizes, and they can also be fitted with tires or chain nets to provide additional protection.
Inflatable marine rubber fender is marine equipment used to prevent ships, ships, and other naval vessels from colliding with each other or crashing into docks, wharves, and piers. In other words, inflatable marine rubber fenders can be simply called marine bumpers.
Inflatable Marine Rubber Fender Advantage
1. Absorb more energy and reduce the adverse impact on the ship
2. Adapt to the tide.
3. Safely overload.
4. Lightweight and easy to install.
5. Easy to maintain.
6. Long service life.
7. Different sizes can be customized upon customer's requirements.
Inflatable Marine Rubber Fender Structure
① Outer rubber layer
Inflatable marine rubber fenders are covered by the outer layer made of natural rubber. This rubber compound is strong enough to protect the inner layer and synthetic-cord layer from the damage of external forces and severe weather conditions due to its high elasticity and abrasion resistance.
② Synthetic-tire-cord layer
The Synthetic-tire-cord layer is made of synthetic-tire-cord fabrics, compared with synthetic canvas fabric and synthetic belt fabric, this reinforcement layer performs better in fatigue-resistance and pressure-holding.
③ Inner rubber layer
The inner layer is designed to seal the air inside the fender.
Inflatable Marine Rubber Fender Specifications
Pneumatic 50 Standard Sizes:
| Dimension | Deflection (60%) | ||
| D (mm) | L (mm) |
Reaction Force (KN) |
Guaranteed Energy Absorption (KNm) |
| 500 | 1000 | 64 | 6 |
| 600 | 1000 | 74 | 8 |
| 700 | 1000 | 137 | 17 |
| 1000 | 1500 | 182 | 32 |
| 1000 | 2000 | 257 | 45 |
| 1200 | 2000 | 297 | 63 |
| 1350 | 2500 | 427 | 102 |
| 1500 | 2500 | 499 | 134 |
| 1500 | 3000 | 579 | 153 |
| 1700 | 3000 | 639 | 191 |
| 2000 | 3500 | 875 | 308 |
| 2000 | 4000 | 1000 | 352 |
| 2500 | 4000 | 1381 | 663 |
| 2500 | 5500 | 2019 | 1131 |
| 3000 | 5000 | 2422 | 1357 |
| 3000 | 6000 | 2906 | 1293 |
| 3300 | 4500 | 1884 | 1175 |
| 3300 | 6500 | 3015 | 1814 |
Pneumatic 80 Standard Sizes:
| Dimension | Deflection (60%) | ||
| D (mm) | L (mm) |
Reaction Force (KN) |
Guaranteed Energy Absorption (KNm) |
| 500 | 1000 | 84 | 9 |
| 600 | 1000 | 94 | 12 |
| 700 | 1000 | 179 | 25 |
| 1000 | 1500 | 236 | 47 |
| 1000 | 2000 | 337 | 66 |
| 1200 | 2000 | 386 | 89 |
| 1350 | 2500 | 554 | 143 |
| 1500 | 2500 | 630 | 179 |
| 1500 | 3000 | 756 | 215 |
| 1700 | 3000 | 829 | 262 |
| 2000 | 3500 | 1126 | 424 |
| 2000 | 4000 | 1453 | 740 |
| 2500 | 4000 | 1817 | 925 |
| 2500 | 5500 | 2653 | 1327 |
| 3000 | 5000 | 2689 | 1558 |
| 3000 | 6000 | 3275 | 1878 |
| 3300 | 4500 | 3476 | 1640 |
| 3300 | 6500 | 3829 | 2508 |
