Product Details:
|
| Brand Name: | Jerryborg | Place Of Origin: | Qingdao,China |
|---|---|---|---|
| Material: | Polyurethane,polyethylene | Color: | Customized |
| Length: | 1.0m~9.0m | Diameter: | 0.5m~4.5m |
| Accessories: | Flange,central Shaft Tube/chain | Certificate: | BV CCS SGS GL ABS ISO17357 EU |
| Warranty: | 24 Months | ||
| Highlight: | foam ship fenders,foam filled boat fenders,foam solid fender |
||

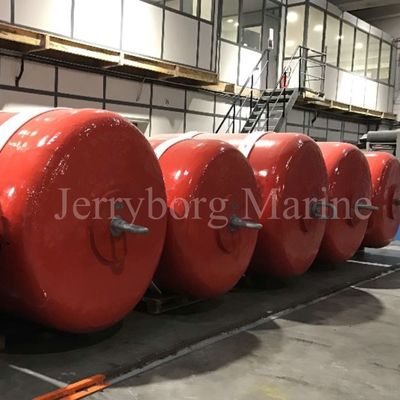

Ship To Quay Floating Foam Fender With Polyurethane Skin Made In China
Floating Foam Fender Introduction
Floating Foam Fender is a floating compression fender, which has a wide range of uses and is suitable for a wide range of applications. It is composed of an external polyurethane protective layer, reinforced rubber nylon cord fabric, and an internal space, which is filled with foam as a collision-absorbing medium. The outer layer of the floating foam fender has extremely low strength, so it has extremely high wear resistance.
The floating EVA boat fender effectively absorbs the impact force, therefore reducing the resultant force acting on the dock/ship at the contact point. A wise application is that this floating foam fender can be used for tugboats, workboats, pilot boats, and is suitable for high seas piers, gravity ports, especially large tidal piers. Floating EVA boat fenders are also a viable option for onboard transportation (STS) operations.
Advantages Of Floating Foam Fender
1. Comparing with ordinary compress rubber fender, the greatest merit of floating EVA boat fender lies in its floating ability, free from effect of tide range;
2. Unlike charged rubber fender, it is not necessary to be charged, hence, free from maintenance.
3. It is safe and need not fear the danger of blast.
4. Adopting flange joint, is easy to install and move.
Structure Of Floating Foam Fender
Closed-cell polyethylene foam performs well in high durability and sturdiness even at extremely low temperatures.
Nylon and tire cord reinforcement is strong enough to protect the foam inside
Outerwear surface is the non-marking polyurethane, which is resistant to acid and alkali, besides it has higher load-bearing capacity and impact resistance.
Q235 hot galvanized flange, hot galvanized central shaft tube/chain
Applications Of Floating Foam Fender
Specification Of Floating Foam Fender
|
Item |
D (mm) |
L (mm) |
Compression Value60% |
Reference Weight (kg) |
|
| Counter Force(KN) |
Energy Absorption (KJ) |
||||
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
