Product Details:
|
| Material: | Polyurethane,polyethylene | Color: | Customized |
|---|---|---|---|
| Part: | Flange,central Shaft Tube/chain | Length: | 1.0m~9.0m |
| Diameter: | 0.5m~4.5m | Certificate: | BV CCS SGS GL ABS ISO17357 EU |
| Warranty: | 24 Months | Brand Name: | Jerryborg |
| High Light: | Colourful Foam Filled Fender,1.5m Foam Filled Fender,3.0m Foam Filled Fender |
||

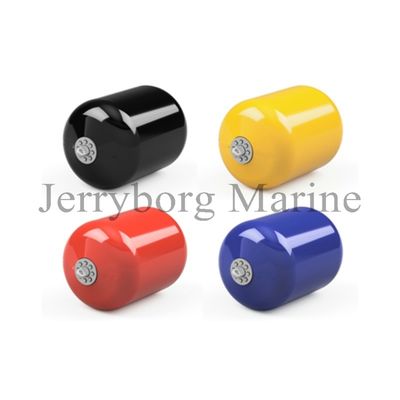

CCS Authorised Floating Type Foam Filled Fender With Polyurethane Skin
Foam Filled Fender Introduction
Foam filled fender is a floating type fender using lightweight and high elasticity foam as a buffer medium to absorb impact energy. It’s composed of a closed-cell EVA core and an outer polyurethane skin.
Foam filled fenders are an alternative to pneumatic fenders. They are made of a closed foam cell core covered with nylon filaments and reinforced polyurethane skin. There is no air inside the fender, so there is no danger of puncture. Foam filled fenders always maintain their performance levels even if they are damaged.
As an alternative to the pneumatic rubber fender, foam filled fender is extremely durable. Moreover, without air inside, there’s no risk of bursting or sinking. And it’s widely used in harbor, offshore platform, or ship to ship operations. Jerryborg’s foam-filled fenders are available in black and other customized colors upon customer’s request.
Features Of Foam Filled Fender
• Low maintenance cost
• Non-marking skin, best for navy ships and cruise terminals
• High energy absorption and low reaction force
• Unsinkable design
Structure Of Foam Filled Fender
Closed-cell polyethylene foam performs well in high durability and sturdiness even at extremely low temperatures.
Nylon and tire cord reinforcement is strong enough to protect the foam inside
Outerwear surface is the non-marking polyurethane, which is resistant to acid and alkali, besides it has higher load-bearing capacity and impact resistance.
Q235 hot galvanized flange, hot galvanized central shaft tube/chain
Applications Of Foam Filled Fender
Specification Of Foam Filled Fender
|
Item
Size(D×L)mm |
D (mm) |
L (mm) |
Compression Value60% |
Reference Weight (kg) |
|
| Counter Force(KN) |
Energy Absorption (KJ) |
||||
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
