Product Details:
|
| Material: | Natural Rubber | Diameter: | Customized |
|---|---|---|---|
| Length: | Customized | Color: | Black |
| Usage: | Catamarans,Semi-Submersible Platforms | Warranty: | 24 Months |
| Shape: | Cylindrical | Certificate: | BV CCS SGS GL ABS ISO17357 EU |
| High Light: | Submarine Hydro Pneumatic Fender,Catamarans Hydro Pneumatic Fender,Natural Rubber Boat Bumper |
||
Submarine Hydro Pneumatic Fender Natural Rubber Boat Bumper For Ship Protection
Submarine Hydro Pneumatic Fender

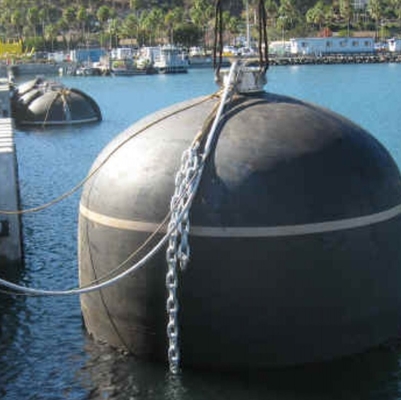

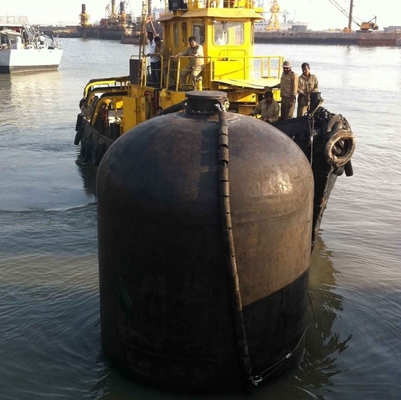

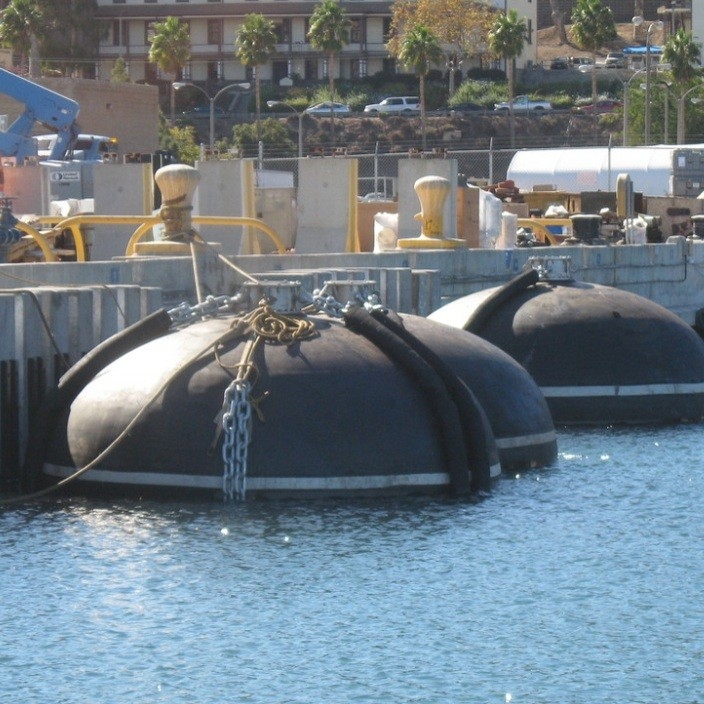

Submarine hydro pneumatic fender is used in catamarans, semi-submersible platforms, and drilling rigs for a long time. This submarine hydropneumatic fender is filled with water and air inside to make it vertically installed against submerged hulls with a counterweight. It’s always regarded as a buffer to reduce shock in between due to its excellent performance of great elasticity and abrasion-resistance.
Submarine hydro pneumatic fenders are made of natural rubber and tire cord reinforcement in the shape of cylindrical, which is strong enough to withstand external forces and severe weather conditions.
Fully compliant with the ISO17357 standard, Jerryborg’s submarine hydro pneumatic fender supplies with a variety of specifications and dimensions to meet customer’s requests and different application conditions.
Submarine Hydro Pneumatic Fender Structure
① Outer rubber layer
Submarine hydro pneumatic fenders are covered by the outer layer made of natural rubber. This rubber compound is strong enough to protect the inner layer and synthetic-cord layer from the damage of external forces and severe weather conditions due to its high elasticity and abrasion resistance.
② Synthetic-tire-cord layer
The Synthetic-tire-cord layer is made of synthetic-tire-cord fabrics, compared with synthetic canvas fabric and synthetic belt fabric, this reinforcement layer performs better in fatigue-resistance and pressure-holding.
③ Inner rubber layer
The inner rubber layer is designed to seal the air inside the fender.
Submarine Hydro Pneumatic Fender Advantage
1. Strong Enough against Shear Force
Submarine hydro pneumatic fender is made of reinforced-tire-cord layers which enable it to make it cope against the shear forces and compression forces.
2. Safe and Reliable
Submarine hydro pneumatic fender is made of several strong cord layers to enable it to be pressure-resistant and puncture-resistant. The submarine hydro pneumatic fender whose diameter is over 2.5m is equipped with a safety valve to release the air inside in case it’s overpressured. The diagram below shows the data variations at different percentage compressions.
3. Tide Adaptation
Submarine hydro pneumatic fender is filled with pressure air inside that makes it flexible and easy to float on the water and adapt to the tide variation.
4. Easy to Install or Replace
Floating on the water makes submarine hydro pneumatic fender easy to moored by means of guy rope or chain. When the fender is not in use, it can be transferred easily after releasing the air inside.
Submarine Hydro Pneumatic Fender Specification Table
fender size | without water 60% deflection | filled with water 45% deflection | ||||
energy | reaction | ratio water/air | energy | reaction | ||
| 1700×7,200 | 560 | 1,810 | 65/35 | 134 | 611 | |
| 2,000×6,000 | 647 | 1,766 | 65/35 | 155 | 599 | |
| 2,500×5,500 | 928 | 2,037 | 65/35 | 223 | 687 | |
| 3,300×6,500 | 1,913 | 3,169 | 60/40 | 616 | 1,247 | |
| 3,300×10,600 | 3,120 | 5,170 | 55/45 | 589 | 1,275 | |
| standard tolerance of ±10% | ||||||
For further information free to contact us.
