ISO17357 Marine Fender for Yacht Good Performance Inflatable Fender

ISO17357 Marine Fender for Yacht Good Performance Inflatable Fender
ISO17357 Marine Fender for Yacht Good Performance Inflatable Fender

Large Image :  ISO17357 Marine Fender for Yacht Good Performance Inflatable Fender

Product Details:
Place of Origin: Shandong, China
Brand Name: Jerryborg
Certification: ISO17357 BV CCS ABS GL LR DVN SGS KR RINA
Model Number: 2.5m*3.5m
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nude packing
Delivery Time: 10-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per year

ISO17357 Marine Fender for Yacht Good Performance Inflatable Fender

Description
Material: Natural Rubber Size: Customized Size
Initial Pressure: 50kpa 80kpa Usage: Anti-collision Device For Marine Application
Part: Tyre-chain Net, Flange, Fender Color: Black, Grey, Creamy White, Etc
Product Name: Pneumatic Fender, Ship Fender, Boat Fender Warranty: 24 Months
High Light:

Marine Fender

,

ISO17357 Marine Fender

,

Inflatable Fender

ISO17357 Marine Fender for Yacht Good Performance Inflatable Fender

Marine Fender

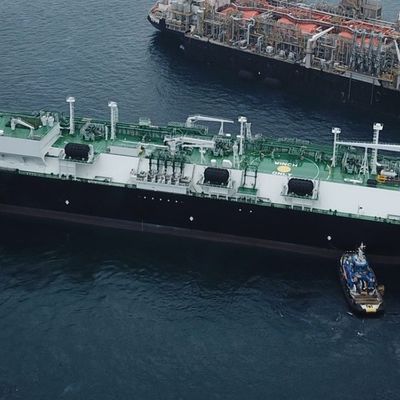

Marine fender, also called Yokohama fender, has been used in port, harbor, and maritime operations for decades since it was developed in 1958. With the development of ship technology, this pneumatic fender is used extensively in ship-to-ship transfer operations and ship mooring and berthing operations. It’s always regarded as a buffer to reduce shock in between due to its excellent performance of great elasticity and abrasion-resistance.



Marine fenders are mainly divided into three types, including sling type, hydro-pneumatic type, and chain and tire net type. There are also other types like ribbed type, rope net type, and rubber tube rope type. Each type plays a critical role in protecting the safety of marine operations.



Fully compliant with the ISO17357 standard, Jerryborg’s fender supplies with a variety of specifications and dimensions to meet customer’s requests and different application conditions.



ISO17357 Marine Fender for Yacht Good Performance Inflatable Fender 0ISO17357 Marine Fender for Yacht Good Performance Inflatable Fender 1





Marine Fender​ Structure



① Outer rubber layer

ISO17357 marine fenders are covered by the outer layer made of natural rubber. This rubber compound is strong enough to protect the inner layer and synthetic-cord layer from the damage of external forces and severe weather conditions due to its high elasticity and abrasion resistance.



② Synthetic-tire-cord layer

The synthetic-tire-cord layer is made of synthetic-tire-cord fabrics, compared with synthetic canvas fabric and synthetic belt fabric, this reinforcement layer performs better in fatigue-resistance and pressure-holding.



③ Inner rubber layer

The inner layer is designed to seal the air inside the fender.

pneumatic fenders





Marine Fender Advantage



1. Safe and Reliable

The ISO17357​ marine fender is made of several strong cord layers to enable it to be pressure-resistant and puncture-resistant. The fender whose diameter is over 2.5m is equipped with a safety valve to release the air inside in case it’s overpressured. The diagram below shows the data variations at different percentage compressions.

pneumatic fenders



2. No Variation or Deformation in Performance

The ISO17357 marine fender is filled with the air of compressive elasticity inside, the deformation caused by fatigue is absent. In the experiment below of pneumatic yokohama type fender, the performance variation will not happen if the pressure is maintained properly.

pneumatic fenders

Our fender remains the same without any variation or deformation even at temperatures under -50 degrees centigrade (-58 degrees Fahrenheit).



3. Relatively Low Economic Cost

With the advantage of compressive elasticity of air, the surface pressure of fenders is completely uniform, which is equal to the internal air pressure and makes it popular with LNG-ship terminals.

pneumatic fenders





Specifications of Marine Fender



Pneumatic 50 Standard Sizes:

Dimension Deflection (60%)
D (mm) L (mm)

Reaction Force

(KN)

Guaranteed Energy Absorption (KNm)

500 1000 64 6
600 1000 74 8
700 1000 137 17
1000 1500 182 32
1000 2000 257 45
1200 2000 297 63
1350 2500 427 102
1500 2500 499 134
1500 3000 579 153
1700 3000 639 191
2000 3500 875 308
2000 4000 1000 352
2500 4000 1381 663
2500 5500 2019 1131
3000 5000 2422 1357
3000 6000 2906 1293
3300 4500 1884 1175
3300 6500 3015 1814


Pneumatic 80 Standard Sizes:

Dimension Deflection (60%)
D (mm) L (mm)

Reaction Force

(KN)

Guaranteed Energy Absorption

(KNm)

500 1000 84 9
600 1000 94 12
700 1000 179 25
1000 1500 236 47
1000 2000 337 66
1200 2000 386 89
1350 2500 554 143
1500 2500 630 179
1500 3000 756 215
1700 3000 829 262
2000 3500 1126 424
2000 4000 1453 740
2500 4000 1817 925
2500 5500 2653 1327
3000 5000 2689 1558
3000 6000 3275 1878
3300 4500 3476 1640
3300 6500 3829 2508


For further information free to contact us.
