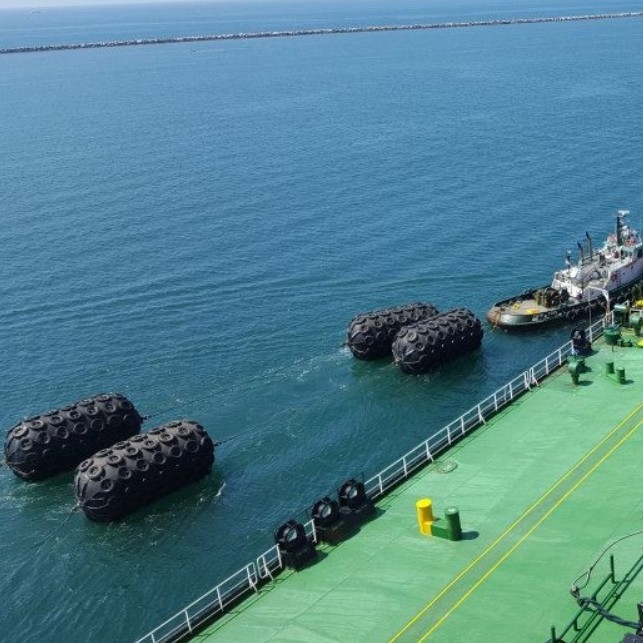

Yokohama Floating Pneumatic Fender

Yokohama Floating Pneumatic Fender
Yokohama Floating Pneumatic Fender Yokohama Floating Pneumatic Fender

Large Image :  Yokohama Floating Pneumatic Fender

Product Details:
Place of Origin: Shandong, China
Brand Name: Jerryborg
Certification: ISO17357 BV CCS ABS GL LR DVN SGS KR RINA
Model Number: 2.5m*3.5m
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nude packing
Delivery Time: 10-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per year

Yokohama Floating Pneumatic Fender

Description
Material: Natural Rubber Size: Customized Size
Initial Pressure: 50kpa 80kpa Usage: Anti-collision Device For Marine Application
Part: Tyre-chain Net,flange,fender Color: Black,grey,creamy White,etc
Warranty: 24 Months Type: Trelleborg Type Pneumatic Fender
High Light:

Yokohama Floating Pneumatic Fender

,

Marine Floating Pneumatic Fender

,

80kpa Yokohama Rubber Fender

Marine Floating Pneumatic Fender Yokohama Type Anti-collision Pneumatic Bumpers





Marine Floating Pneumatic Fender



Marine floating pneumatic fender, also called Yokohama fender, has been used in port, harbor, and maritime operations for decades since it was developed in 1958. With the development of ship technology, this marine floating pneumatic fender is used extensively in ship-to-ship transfer operations and ship mooring and berthing operations. It’s always regarded as a buffer to reduce shock in between due to its excellent performance of great elasticity and abrasion-resistance.



Fully compliant with the ISO17357 standard, Jerryborg’s marine floating pneumatic fender supplies with a variety of specifications and dimensions to meet customer’s requests and different application conditions.





Marine Floating Pneumatic Fender Advantage



1. Safe and Reliable



Marine floating pneumatic fender is made of several strong cord layers to enable it to be pressure-resistant and puncture-resistant. The marine floating pneumatic fender whose diameter is over 2.5m is equipped with a safety valve to release the air inside in case it’s overpressured. The diagram below shows the data variations at different percentage compressions.

floating pneumatic fender



2. No Variation or Deformation in Performance



Marine floating pneumatic fender is filled with the air of compressive elasticity inside, the deformation caused by fatigue is absent. In the experiment below of marine floating pneumatic fender, the performance variation will not happen if the pressure is maintained properly.

floating pneumatic fender

Our marine floating pneumatic fender remains the same without any variation or deformation even at temperatures under -50 degrees centigrade (-58 degrees Fahrenheit).



3. Advantage Under Severe Weather Conditions



Under normal circumstances, the ship movement caused by high and long-period waves or strong wind will bring repeated compression and shearing forces on the fender and make it easier to be fatigue and damage. However marine floating pneumatic fender is strong enough to resist severe weather conditions, the reaction force increases slowly compared with solid fender and won’t easily reach the maximum.

floating pneumatic fender







Marine Floating Pneumatic Fender Classification



Marine floating pneumatic fenders are produced with two initial pressure ratings, which are pneumatic 50 (P50, initial internal pressure 50kPa) and pneumatic 80 (P80, initial internal pressure 80kPa).



Marine floating pneumatic fenders are mainly classified into three types as follows:



1. Marine Floating Pneumatic Fender with Chain and Tyre Net

pneumatic fender

With chain and tire net covering the fender body, the marine floating pneumatic fender can reduce the damage of friction and abrasion caused by direct contact. Therefore it’s widely used in places with complicated and unstable tide variation, such as ship-to-ship(STS) and ship-to-dock(STD) operations. In addition, as for the protective tire, Jerryborg offers four types of tires with different sizes and thicknesses for customers to choose from.



2. Sling Type Marine Floating Pneumatic Fender

pneumatic fender

Sling type marine floating pneumatic fender will be connected with a guy chain or guy rope with a lifting device on both ends.



3. Hydro Pneumatic Type Marine Floating Pneumatic Fender



floating pneumatic rubber fender

Hydropneumatic marine floating pneumatic fender is usually used as a bumper with submarines and other semi-submersibles platforms. It can be installed vertically in the water cause it’s filled with air and water inside and equipped with a counterweight.



All these marine floating pneumatic fenders mentioned above are available usually in black, the color is also customized upon your request. Jerryborg offers marine floating pneumatic fenders with various sizes in diameter ranging from 500mm to 4500mm, length ranging from 1000mm to 9000mm.





Marine Floating Pneumatic Fender Application

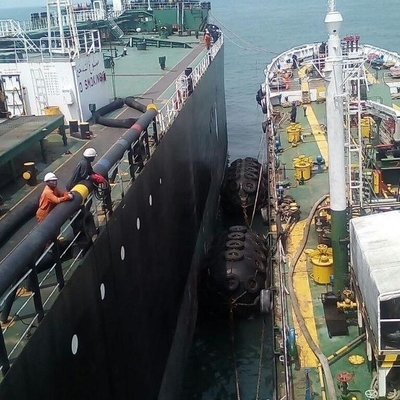

 1. Ship-to-ship transfer operations



 2. Ship-to-ship services



 3. Offshore platform defense



 4. Ship berthing at the dock



 5. Hang on the ship hull





Marine Floating Pneumatic Fender Specifications



Pneumatic 50 Standard Sizes:



Dimension Deflection (60%)
D (mm) L (mm)

Reaction Force

(KN)

Guaranteed Energy Absorption

(KNm)

500 1000 64 6
600 1000 74 8
700 1000 137 17
1000 1500 182 32
1000 2000 257 45
1200 2000 297 63
1350 2500 427 102
1500 2500 499 134
1500 3000 579 153
1700 3000 639 191
2000 3500 875 308
2000 4000 1000 352
2500 4000 1381 663
2500 5500 2019 1131
3000 5000 2422 1357
3000 6000 2906 1293
3300 4500 1884 1175
3300 6500 3015 1814



Pneumatic 80 Standard Sizes:



Dimension Deflection (60%)
D (mm) L (mm)

Reaction Force

(KN)

Guaranteed Energy Absorption

(KNm)

500 1000 84 9
600 1000 94 12
700 1000 179 25
1000 1500 236 47
1000 2000 337 66
1200 2000 386 89
1350 2500 554 143
1500 2500 630 179
1500 3000 756 215
1700 3000 829 262
2000 3500 1126 424
2000 4000 1453 740
2500 4000 1817 925
2500 5500 2653 1327
3000 5000 2689 1558
3000 6000 3275 1878
3300 4500 3476 1640
3300 6500 3829 2508


For further information free to contact us.
