Product Details:
|
| Place Of Origin: | Qingdao,China | Brand Name: | Jerryborg |
|---|---|---|---|
| Material: | Natural Rubber | Size: | 1.5×15.0m |
| Color: | Black | Part: | Inflatable Tool,pull Ring |
| Certificate: | CCS,BV,LR,UKAS,ABS,ANAB | Shape: | Cylindrical Body |
| Warranty: | 24 Months | ||
| High Light: | 1.5m Heavy Lifting Airbags,15m Heavy Lifting Airbags,Inflatable Heavy Lifting Airbags |
||
1.5m*15m Inflatable Rubber Roller Bag Natural Rubber Heavy Duty Lifting Airbag
Inflatable Rubber Roller Bag Description

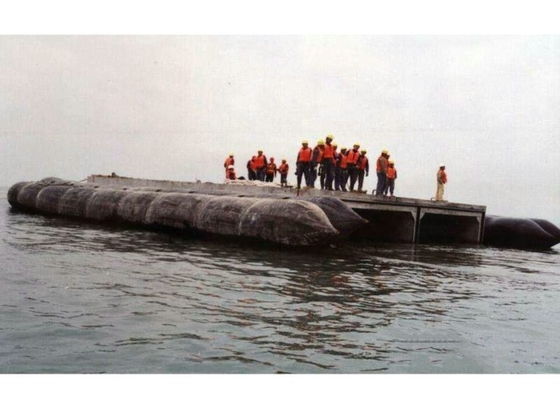

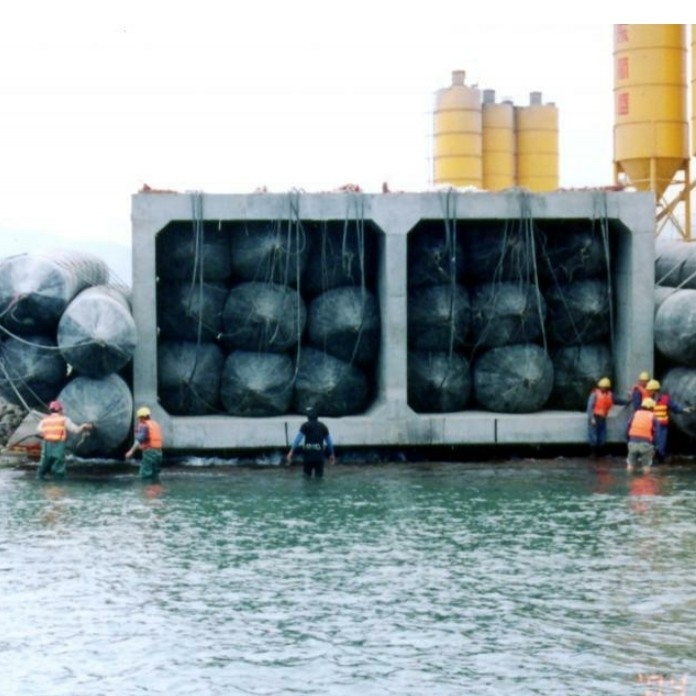

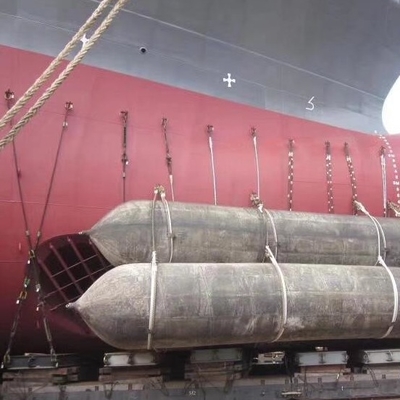

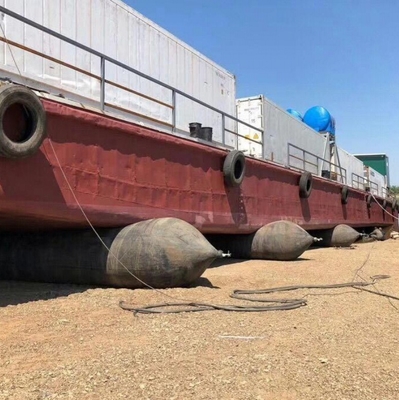

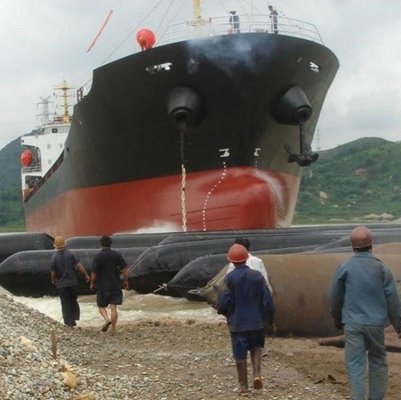

Inflatable rubber roller bags are innovative products with independent intellectual property rights in China. It has a wide range of applications, such as ship launching and upgrading, caisson lifting and moving, heavy lifting, underwater engineering buoyancy aids. Inflatable rubber roller bags are not limited to space and heavy machinery, they can effectively shorten the construction period and save a lot of money.
With more than 20 years of development in China, inflatable rubber roller bags have proven to be the most reliable and stable technology for ship launching and upgrading. It is suitable for large ships ranging from several tons of flat plates to 10,000 tons. At the same time, inflatable rubber roller bags are also widely recognized by foreign docks, shipyards, and port/port construction companies. In the United States, Europe, Southeast Asia, and other markets, the launching and upgrading technology of ships with marine rubber airbags has also been vigorously promoted.
Inflatable Rubber Roller Bag Advantages
Inflatable Rubber Roller Bag Application
Constructions Of Inflatable Rubber Roller Bag
Inflatable Rubber Roller Bag Specification
| Series | Model | Diameter(m) | Working Pressure(Mpa) | Working Height(m) | Beating Capacity(Ton/m) | ||||
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D | ||||
| S1 |
S10 |
0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 | ||
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 | ||
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 | ||
| S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 | |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 | ||
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 | ||
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 | ||
| S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 | |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 | ||
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 | ||
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 | ||
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 | ||
| S2 | S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 | ||
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 | ||
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 | ||
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 | ||
| S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 | |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 | ||
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 | ||
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 | ||
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 | ||
| S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 | |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 | ||
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 | ||
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 | ||
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 | ||
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 | ||
| S3 | S30 | 1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 | ||
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 | ||
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 | ||
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 | ||
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0 | ||
