Product Details:
|
| Material: | Natural Rubber | Color: | Black |
|---|---|---|---|
| Part: | Inflatable Tool,pull Ring | Shape: | Cylindrical Body |
| Certificate: | CCS,BV,LR,UKAS,ABS,ANAB | Size: | 1.2m×15.0m |
| Warranty: | 24 Months | Brand Name: | Jerryborg |
| Application: | Ship Launching&upgrading, Ship Salvage, Heavy Lifting | ||
| High Light: | High Pressure Marine Airbag,Inflatable Marine Airbag,15m Marine Rubber Airbag |
||

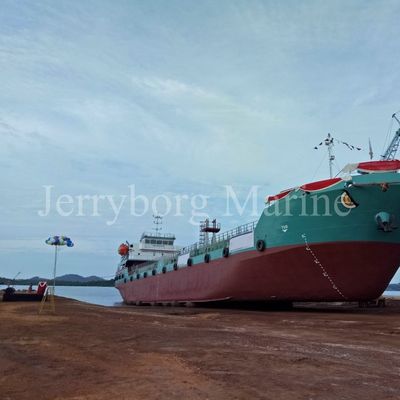

CCS Authorised Inflatable Natural Rubber High-pressure Marine Airbag For Ship Launching
High-pressure Marine Airbag Description
High-pressure marine airbags are innovative products with independent intellectual property rights in China. It has a wide range of applications, such as ship launching and upgrading, caisson lifting and moving, heavy lifting, underwater engineering buoyancy aids. Inflatable rubber roller bags are not limited to space and heavy machinery, they can effectively shorten the construction period and save a lot of money.
With more than 20 years of development in China, high-pressure marine airbags have proven to be the most reliable and stable technology for ship launching and upgrading. It is suitable for large ships ranging from several tons of flat plates to 10,000 tons. At the same time, high-pressure marine airbags are also widely recognized by foreign docks, shipyards, and port/port construction companies. In the United States, Europe, Southeast Asia, and other markets, the launching and upgrading technology of ships with high-pressure marine airbags has also been vigorously promoted.
High-pressure Marine Airbag Advantages
High-pressure Marine Airbag Application
Constructions Of High-pressure Marine Airbag
1) Outer rubber layer
The outer rubber layer covers the exterior of the high-pressure marine airbag to protect the lower layer from wear and other external forces. The compound has sufficient tensile strength and tear strength can withstand any severe conditions and hard use.
2) Inner rubber layer
The inner rubber layer seals the compressed air in the high-pressure marine airbag body.
3) Synthetic tire cord layer as a reinforcement layer
The reinforced cord layer is made of synthetic tire cord, arranged at the desired angle to maintain internal pressure and evenly distribute stress. Therefore, they can provide strong and effective reinforcement.
High-pressure Marine Airbag Specification
| Series | Model | Diameter(m) | Working Pressure(Mpa) | Working Height(m) | Beating Capacity(Ton/m) | ||||
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D | ||||
| S1 |
S10 |
0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 | ||
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 | ||
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 | ||
| S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 | |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 | ||
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 | ||
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 | ||
| S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 | |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 | ||
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 | ||
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 | ||
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 | ||
| S2 | S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 | ||
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 | ||
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 | ||
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 | ||
| S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 | |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 | ||
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 | ||
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 | ||
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 | ||
| S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 | |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 | ||
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 | ||
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 | ||
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 | ||
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 | ||
| S3 | S30 | 1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 | ||
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 | ||
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 | ||
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 | ||
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0 | ||
