Ship Launching And Lifting Marine Rubber Airbag 1.2m*15m

Ship Launching And Lifting Marine Rubber Airbag 1.2m*15m
Ship Launching And Lifting Marine Rubber Airbag 1.2m*15m Ship Launching And Lifting Marine Rubber Airbag 1.2m*15m Ship Launching And Lifting Marine Rubber Airbag 1.2m*15m Ship Launching And Lifting Marine Rubber Airbag 1.2m*15m Ship Launching And Lifting Marine Rubber Airbag 1.2m*15m

Large Image :  Ship Launching And Lifting Marine Rubber Airbag 1.2m*15m

Product Details:
Place of Origin: Shandong, China
Brand Name: Jerryborg
Certification: ISO17357 CCS BV
Model Number: 1.2m*15m
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: nude packing
Delivery Time: 10-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per year

Ship Launching And Lifting Marine Rubber Airbag 1.2m*15m

Description
Brand Name: Jerryborg Place Of Origin: Qingdao,China
Material: Natural Rubber Color: Black
Certificate: CCS,BV,ABS, Part: Inflatable Tool,pull Ring
Shape: Cylindrical Body Size: 1.2×12.0m
Warranty: 24 Months
Highlight:

1.2m Marine Rubber Airbag

,

BV Marine Airbag

,

1.2m Marine Air Bags

1.2m*15m Ship Launching And Lifting Marine Launching Airbag Natural Rubber Roller Bags





Marine Launching Airbag Description



Marine launching airbags are the system of choice for reliable, controllable buoyancy. They are ideal for installing buoyancy on pipeline buoys, beach towing, and river crossings. In addition, our marine launching airbags can also reduce the draught of ships and platforms within a limited depth of water, and can also be used as rescue buoys for temporary bridges and piers. People can use marine launching airbags to rescue sunken ships and rescue pontoons and docks.



Marine launching airbags are composed of inner reinforced synthetic-tire-cord layers and outer rubber layers in the shape of cylindrical. Which is capable of high capacity against compression and twisting. Jerryborg supplies various sizes of marine launching airbags depending on the customer’s request.





Marine Launching Airbag Advantages



1. High safety level: equipped with a reliable safety valve, our airbags can stand the maximum pressure up to 4 times that of the operating pressure.


2. Good air tightness: pressure decreases less than 10% for a period of 24 hours.


3. Long lifespan: it is guaranteed that our airbags can sustain their designed operating pressure for 3 years.


4. A complete set of solutions is available.





Constructions Of Marine Launching Airbag



  • Structure: outer rubber layer, inner rubber layer, synthetic tire cord layer
  • Cord layers: 4-10 layers
  • Shape: a cylindrical body, two heads
  • Accessories: pressure gauge, pull ring, three-way piece, ball valve, connecting pipe

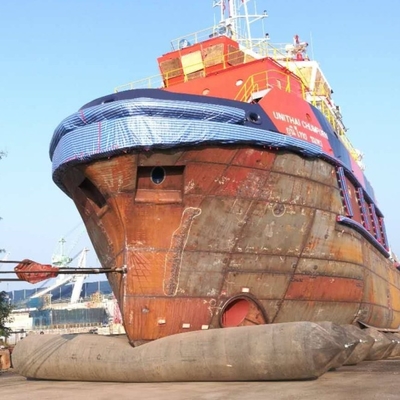

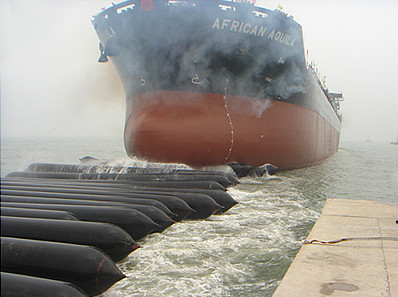

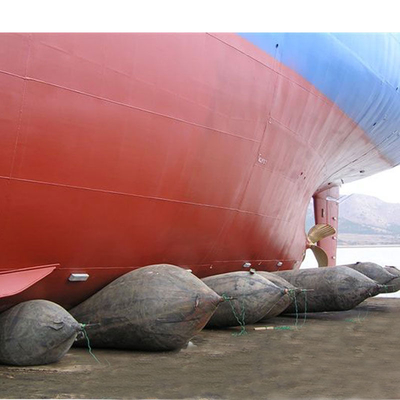

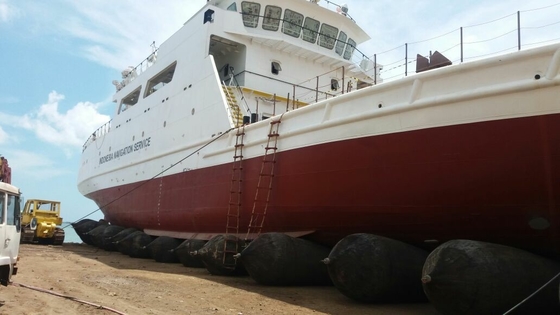

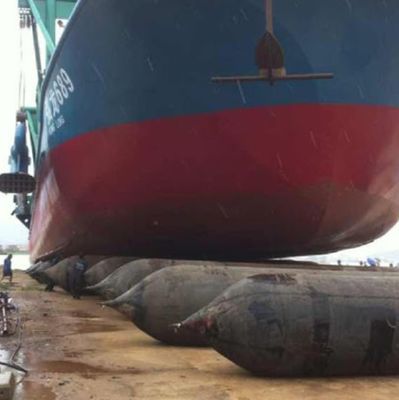

ship launching airbag





Marine Launching Airbag Application



  • Weight moving & lifting
  • Ship launching and upgrading
  • Ship salvage
  • Caissons lifting and floating
  • Pipeline blocking

marine rubber airbags





Marine Launching Airbag Specification



Series Model Diameter(m) Working Pressure(Mpa) Working Height(m) Beating Capacity(Ton/m)
0.4D 0.5D 0.6D 0.4D 0.5D 0.6D
S1



S10

0.8 0.20 0.32 0.40 0.48 15.1 12.6 10.0
1 0.16 0.40 0.50 0.60 15.1 12.6 10.0
1.2 0.14 0.48 0.60 0.72 15.8 13.2 10.6
1.5 0.11 0.60 0.75 0.90 15.5 13.0 10.4
S11 0.8 0.19 0.32 0.40 0.48 14.3 11.9 9.5
1 0.15 0.40 0.50 0.60 14.1 11.8 9.4
1.2 0.13 0.48 0.60 0.72 14.7 12.2 9.8
1.5 0.10 0.60 0.75 0.90 14.1 11.8 9.4
S12 0.8 0.24 0.32 0.40 0.48 18.1 15.1 12.1
1 0.19 0.40 0.50 0.60 17.9 14.9 11.9
1.2 0.16 0.48 0.60 0.72 18.1 15.1 12.1
1.5 0.13 0.60 0.75 0.90 18.4 15.3 12.2
1.8 0.10 0.72 0.90 1.08 17.0 14.1 11.3
S2 S20 1 0.24 0.40 0.50 0.60 22.6 18.8 15.1
1.2 0.20 0.48 0.60 0.72 22.6 18.8 15.1
1.5 0.16 0.60 0.75 0.90 22.6 18.8 15.1
1.8 0.13 0.72 0.90 1.08 22.0 18.4 14.7
2 0.12 0.80 1.00 1.20 22.6 18.8 15.1
S21 1 0.27 0.40 0.50 0.60 25.4 21.2 17.0
1.2 0.23 0.48 0.60 0.72 26.0 21.7 17.3
1.5 0.18 0.60 0.75 0.90 25.4 21.2 17.0
1.8 0.15 0.72 0.90 1.08 25.4 21.2 17.0
2 0.14 0.80 1.00 1.20 26.4 22.0 17.6
S22 1 0.31 0.40 0.50 0.60 29.2 24.3 19.5
1.2 0.26 0.48 0.60 0.72 29.4 24..5 19.6
1.5 0.20 0.60 0.75 0.90 28.3 23.6 18.8
1.8 0.17 0.72 0.90 1.08 28.8 24.0 19.2
2 0.15 0.80 1.00 1.20 28.3 23.6 18.8
2.5 0.12 1.00 1.25 1.50 28.3 23.6 18.8
S3 S30 1 0.35 0.40 0.50 0.60 33.0 27.5 22.0
1.2 0.29 0.48 0.60 0.72 32.8 27.3 21.9
1.5 0.23 0.60 0.75 0.90 32.5 27.1 21.7
1.8 0.19 0.72 0.90 1.08 32.2 26.8 21.5
2 0.17 0.80 1.00 1.20 32.0 26.7 21.4
2.5 0.14 1.00 1.25 1.50 33.0 27.5 22.0

For further information free to contact us.
