Product Details:
|
Material: | Natural Rubber | Initial Pressure: | 50kpa 80kpa |
---|---|---|---|
Usage: | Anti-collision Device For Marine Application | Part: | Tyre-chain Net,flange,fender |
Color: | Black,grey,creamy White,etc | Warranty: | 24 Months |
Product Name: | Pneumatic Fender, Ship Fender, Boat Fender, Floating Rubber Fender | Diameter: | 0.5m~4.5m |
Length: | 1.0m~12.0m | ||
Highlight: | Marine Fender,CCS Marine Fender,Natant Rubber Ballon |
CCS Marine Fender for Boat High Strength Natant Rubber Ballon
Marine Fender
Marine fender, also called Yokohama fender, has been used in port, harbor, and maritime operations for decades since it was developed in 1958. With the development of ship technology, this fender is used extensively in ship-to-ship transfer operations and ship mooring and berthing operations. It’s always regarded as a buffer to reduce shock in between due to its excellent performance of great elasticity and abrasion-resistance.
Marine fenders are divided into three types, including sling type, hydro-pneumatic type, and chain and tire net type. Each type plays a critical role in protecting the safety of marine operations.
Fully compliant with the ISO17357 standard, Jerryborg’s fender supplies with a variety of specifications and dimensions to meet customer’s requests and different application conditions.
Marine Fender Advantage
1. Absorb more energy and reduce the adverse impact on the ship
2. Adapt to the tide.
3. Safely overload.
4. Lightweight and easy to install.
5. Easy to maintain.
6. Long service life.
7. Different sizes can be customized upon customer's requirements.
Marine Fender Classification
CCS marine fenders are produced with two initial pressure ratings, which are pneumatic 50 (P50, initial internal pressure 50kPa) and pneumatic 80 (P80, initial internal pressure 80kPa).
CCS marine fenders are mainly classified into three types as follows:

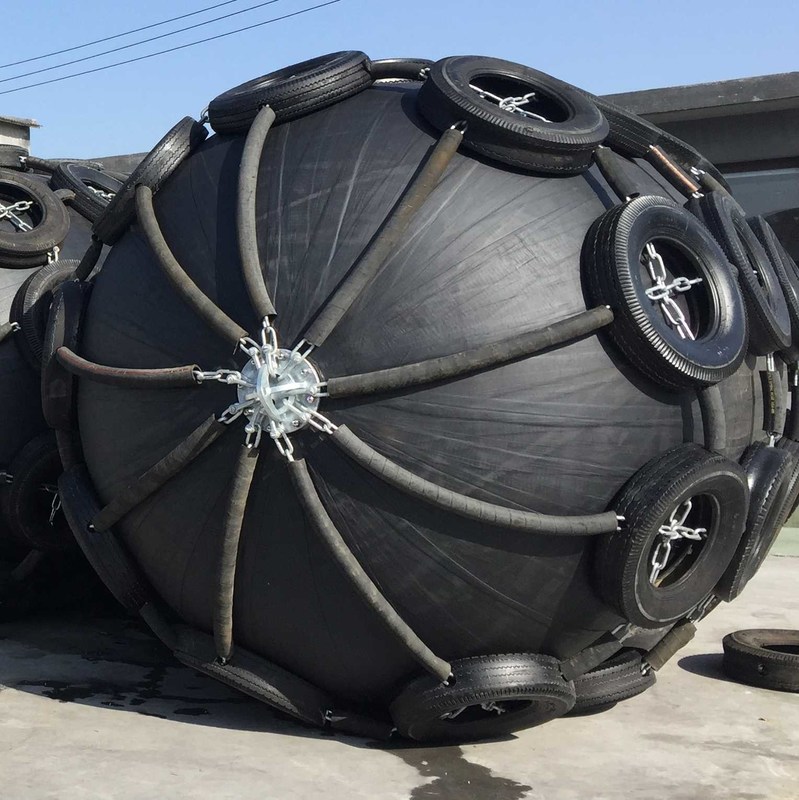

1. CCS Marine Fender with Chain and Tyre Net
With chain and tire net covering the fender body, the CCS marine fender can reduce the damage of friction and abrasion caused by direct contact. Therefore it’s widely used in places with complicated and unstable tide variation, such as ship-to-ship(STS) and ship-to-dock(STD) operations. In addition, as for the protective tire, Jerryborg offers four types of tires with different sizes and thicknesses for customers to choose from.
2. Sling Type CCS Marine Fender
Sling type CCS marine fender will be connected with a guy chain or guy rope with a lifting device on both ends.
3. Hydro Pneumatic Type CCS Marine Fender
Hydropneumatic type CCS marine fender is usually used as a bumper with submarines and other semi-submersible platforms. It can be installed vertically in the water cause it’s filled with air and water inside and equipped with a counterweight.
All these fenders mentioned above are available usually in black, the color is also customized upon your request. Jerryborg offers such fenders with various sizes in diameter ranging from 500mm to 4500mm, length ranging from 1000mm to 9000mm.
4. Other Types
Marine Fender Structure
① Outer rubber layer
CCS marine fenders are covered by the outer layer made of natural rubber. This rubber compound is strong enough to protect the inner layer and synthetic-cord layer from the damage of external forces and severe weather conditions due to its high elasticity and abrasion resistance.
② Synthetic-tire-cord layer
The Synthetic-tire-cord layer is made of synthetic-tire-cord fabrics, compared with synthetic canvas fabric and synthetic belt fabric, this reinforcement layer performs better in fatigue-resistance and pressure-holding.
③ Inner rubber layer
The inner layer is designed to seal the air inside the fender.
Marine Fender Application
1. STS sea transport.
2. Double banking and ships berthing at docks /jetty.
3. Oil and gas carriers.
4. Temporary and permanent installation.
5. Quick response and emergency.6. Liquid cargo and naval defense ships.
Specifications of Marine Fender
Pneumatic 50 Standard Sizes:
Dimension | Deflection (60%) | ||
D (mm) | L (mm) | Reaction Force (KN) | Guaranteed Energy Absorption (KNm) |
500 | 1000 | 64 | 6 |
600 | 1000 | 74 | 8 |
700 | 1000 | 137 | 17 |
1000 | 1500 | 182 | 32 |
1000 | 2000 | 257 | 45 |
1200 | 2000 | 297 | 63 |
1350 | 2500 | 427 | 102 |
1500 | 2500 | 499 | 134 |
1500 | 3000 | 579 | 153 |
1700 | 3000 | 639 | 191 |
2000 | 3500 | 875 | 308 |
2000 | 4000 | 1000 | 352 |
2500 | 4000 | 1381 | 663 |
2500 | 5500 | 2019 | 1131 |
3000 | 5000 | 2422 | 1357 |
3000 | 6000 | 2906 | 1293 |
3300 | 4500 | 1884 | 1175 |
3300 | 6500 | 3015 | 1814 |
Pneumatic 80 Standard Sizes:
Dimension | Deflection (60%) | ||
D (mm) | L (mm) |
Reaction Force (KN) |
Guaranteed Energy Absorption (KNm) |
500 | 1000 | 84 | 9 |
600 | 1000 | 94 | 12 |
700 | 1000 | 179 | 25 |
1000 | 1500 | 236 | 47 |
1000 | 2000 | 337 | 66 |
1200 | 2000 | 386 | 89 |
1350 | 2500 | 554 | 143 |
1500 | 2500 | 630 | 179 |
1500 | 3000 | 756 | 215 |
1700 | 3000 | 829 | 262 |
2000 | 3500 | 1126 | 424 |
2000 | 4000 | 1453 | 740 |
2500 | 4000 | 1817 | 925 |
2500 | 5500 | 2653 | 1327 |
3000 | 5000 | 2689 | 1558 |
3000 | 6000 | 3275 | 1878 |
3300 | 4500 | 3476 | 1640 |
3300 | 6500 | 3829 | 2508 |
For further information free to contact us.
