Cost Saving Anti Aging Floating Rubber Marine Lifting Airbag

Large Image : Cost Saving Anti Aging Floating Rubber Marine Lifting Airbag

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Jerryborg
Certification:	ISO17357 CCS BV
Model Number:	1.2m*15m

Payment & Shipping Terms:

Minimum Order Quantity:	negotiable
Price:	negotiable
Packaging Details:	nude packing
Delivery Time:	10-20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 pieces per year

Contact Now

Cost Saving Anti Aging Floating Rubber Marine Lifting Airbag

Description

Material:	Natural Rubber	Part:	Inflatable Tool,pull Ring
Shape:	Cylindrical Body	Certificate:	CCS,BV,LR,UKAS,ABS,ANAB
Color:	Black	Warranty:	24 Months
Size:	Customized
Highlight:	Marine Inflatable Floating Airbag , 1.2m Marine Lifting Airbag , 15m Marine Lifting Airbag

1.2m*15m Marine Lifting Airbag Floating Natural Rubber Roller Bags

Marine Lifting Airbag Description

Marine lifting airbag, also named roller bags or ship launching rubber balloon, was first invented for ship launching in 1981 in Jinan city of Shandong Province. Marine lifting airbags are accepted by more and more shipyards worldwide due to its’ advantage of saving labor cost and time, besides it’s easy to install and replace. Marine lifting airbags are widely used in ship launching, ship salvage, and other heavy weights lifting and moving.

Marine lifting airbags are composed of inner reinforced synthetic-tire-cord layers and outer rubber layers in the shape of cylindrical. Which is capable of high capacity against compression and twisting. Jerryborg supplies various sizes of marine lifting airbags depending on the customer’s request.

Marine Lifting Airbag Application

Ship launching and upgrading
Ship salvage

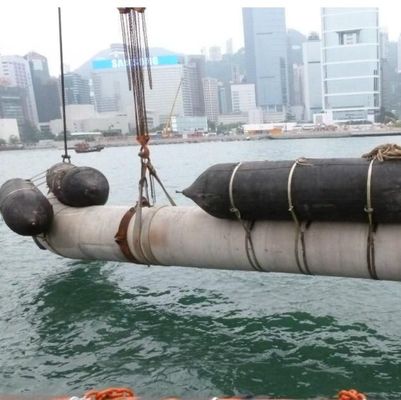

Weight moving & lifting
Caissons lifting and floating
Pipeline blocking

ship launching airbag

Constructions Of Marine Lifting Airbag

Structure: outer rubber layer, inner rubber layer, synthetic tire cord layer
Cord layers: 4-10 layers
Shape: a cylindrical body, two heads
Accessories: pressure gauge, pull ring, three-way piece, ball valve, connecting pipe

ship launching airbag

Marine Lifting Airbag Advantages

Saving labor cost and time
High capacity against compression and twisting
Big carrying capacity
New design of anti-bursting construction at the end
Beyond space limitation

Marine Lifting Airbag Specification

Series	Model	Diameter(m)	Working Pressure(Mpa)	Working Height(m)			Beating Capacity(Ton/m)
Series	Model	Diameter(m)	Working Pressure(Mpa)	0.4D	0.5D	0.6D	0.4D	0.5D	0.6D
S1	S10	0.8	0.20	0.32	0.40	0.48	15.1	12.6	10.0
		1	0.16	0.40	0.50	0.60	15.1	12.6	10.0
		1.2	0.14	0.48	0.60	0.72	15.8	13.2	10.6
		1.5	0.11	0.60	0.75	0.90	15.5	13.0	10.4
	S11	0.8	0.19	0.32	0.40	0.48	14.3	11.9	9.5
		1	0.15	0.40	0.50	0.60	14.1	11.8	9.4
		1.2	0.13	0.48	0.60	0.72	14.7	12.2	9.8
		1.5	0.10	0.60	0.75	0.90	14.1	11.8	9.4
	S12	0.8	0.24	0.32	0.40	0.48	18.1	15.1	12.1
		1	0.19	0.40	0.50	0.60	17.9	14.9	11.9
		1.2	0.16	0.48	0.60	0.72	18.1	15.1	12.1
		1.5	0.13	0.60	0.75	0.90	18.4	15.3	12.2
		1.8	0.10	0.72	0.90	1.08	17.0	14.1	11.3
S2	S20	1	0.24	0.40	0.50	0.60	22.6	18.8	15.1
		1.2	0.20	0.48	0.60	0.72	22.6	18.8	15.1
		1.5	0.16	0.60	0.75	0.90	22.6	18.8	15.1
		1.8	0.13	0.72	0.90	1.08	22.0	18.4	14.7
		2	0.12	0.80	1.00	1.20	22.6	18.8	15.1
	S21	1	0.27	0.40	0.50	0.60	25.4	21.2	17.0
		1.2	0.23	0.48	0.60	0.72	26.0	21.7	17.3
		1.5	0.18	0.60	0.75	0.90	25.4	21.2	17.0
		1.8	0.15	0.72	0.90	1.08	25.4	21.2	17.0
		2	0.14	0.80	1.00	1.20	26.4	22.0	17.6
	S22	1	0.31	0.40	0.50	0.60	29.2	24.3	19.5
		1.2	0.26	0.48	0.60	0.72	29.4	24..5	19.6
		1.5	0.20	0.60	0.75	0.90	28.3	23.6	18.8
		1.8	0.17	0.72	0.90	1.08	28.8	24.0	19.2
		2	0.15	0.80	1.00	1.20	28.3	23.6	18.8
		2.5	0.12	1.00	1.25	1.50	28.3	23.6	18.8
S3	S30	1	0.35	0.40	0.50	0.60	33.0	27.5	22.0
		1.2	0.29	0.48	0.60	0.72	32.8	27.3	21.9
		1.5	0.23	0.60	0.75	0.90	32.5	27.1	21.7
		1.8	0.19	0.72	0.90	1.08	32.2	26.8	21.5
		2	0.17	0.80	1.00	1.20	32.0	26.7	21.4
		2.5	0.14	1.00	1.25	1.50	33.0	27.5	22.0

For further information free to contact us.
