Product Details:
|
| Material: | NR | Initial Pressure: | 50kpa 80kpa |
|---|---|---|---|
| Product Name: | Pneumatic Fender, Yokohama Fenders, Boat Fender, Floating Rubber Fender | Certificate: | BV,ABS,CCS |
| Size: | 3.3*6.5m | Application: | Marine Berthing And Mooring |
| Port: | Qingdao Port | Brand Name: | Jerryborg |
| Highlight: | Fender,Rubber Fender,Marine Rubber Fender |
||

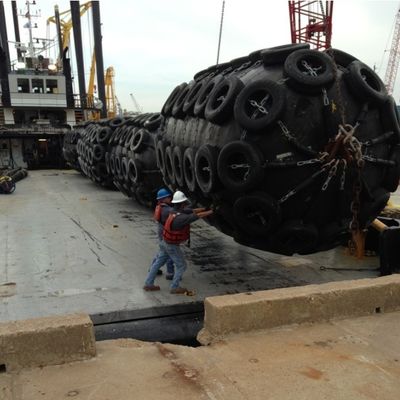

EU ABS Yokohama Rubber Fender for Tugboat High Performance Docking Fender
Fender
Fender is an ideal STS protection bumper that is strong enough to withstand the damage of hard usage, and it's widely applied to places, like STS dock and STD wharf. Such fenders mainly consist of three types, including sling type, CTN, and hydropneumatic type. Each type is available in various dimensions. According to the ISO17357 standard, Jerryborg is specializing in offering high-quality fenders.
Fender
Rubber fender consists of outer rubber layer, synthetic-tire-cord layer, and inner rubber layer. The outer rubber layer is made of special compounds that are strong with high tensile strength and tear strength to better protect the fender from the damage of severe weather conditions and hard usage. The synthetic-tire-cord layer is a composite tire cord with cross shadow lines, which is designed to distribute stress evenly. While the inner rubber layer is specially designed to seal the internal air and prevent any leakage.
Fender Specifications
Pneumatic 50 Standard Sizes:
| Dimension | Deflection (60%) | ||
| D (mm) | L (mm) | Reaction Force (KN) | Guaranteed Energy Absorption (KNm) |
| 500 | 1000 | 64 | 6 |
| 600 | 1000 | 74 | 8 |
| 700 | 1000 | 137 | 17 |
| 1000 | 1500 | 182 | 32 |
| 1000 | 2000 | 257 | 45 |
| 1200 | 2000 | 297 | 63 |
| 1350 | 2500 | 427 | 102 |
| 1500 | 2500 | 499 | 134 |
| 1500 | 3000 | 579 | 153 |
| 1700 | 3000 | 639 | 191 |
| 2000 | 3500 | 875 | 308 |
| 2000 | 4000 | 1000 | 352 |
| 2500 | 4000 | 1381 | 663 |
| 2500 | 5500 | 2019 | 1131 |
| 3000 | 5000 | 2422 | 1357 |
| 3000 | 6000 | 2906 | 1293 |
| 3300 | 4500 | 1884 | 1175 |
| 3300 | 6500 | 3015 | 1814 |
Pneumatic 80 Standard Sizes:
| Dimension | Deflection (60%) | ||
| D (mm) | L (mm) |
Reaction Force (KN) |
Guaranteed Energy Absorption (KNm) |
| 500 | 1000 | 84 | 9 |
| 600 | 1000 | 94 | 12 |
| 700 | 1000 | 179 | 25 |
| 1000 | 1500 | 236 | 47 |
| 1000 | 2000 | 337 | 66 |
| 1200 | 2000 | 386 | 89 |
| 1350 | 2500 | 554 | 143 |
| 1500 | 2500 | 630 | 179 |
| 1500 | 3000 | 756 | 215 |
| 1700 | 3000 | 829 | 262 |
| 2000 | 3500 | 1126 | 424 |
| 2000 | 4000 | 1453 | 740 |
| 2500 | 4000 | 1817 | 925 |
| 2500 | 5500 | 2653 | 1327 |
| 3000 | 5000 | 2689 | 1558 |
| 3000 | 6000 | 3275 | 1878 |
| 3300 | 4500 | 3476 | 1640 |
| 3300 | 6500 | 3829 | 2508 |
Fender Application
1. STS sea transport.
2. Double banking and ship berthing at docks/jetty.
3. Oil and gas carriers.
4. Temporary and permanent installation.
5. Quick response and emergency.
6. Liquid cargo and naval defense ships.
