BV Marine Cell Fender For Berthing Heavy Duty Polyurethane Fender

BV Marine Cell Fender for Berthing Made in China Heavy Duty Polyurethane Fender

Product Introduction

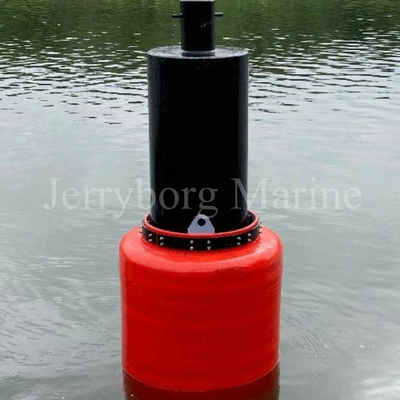

Jerryborg Donut fenders are a simple and versatile solution for berth corners, locks and similar applications.

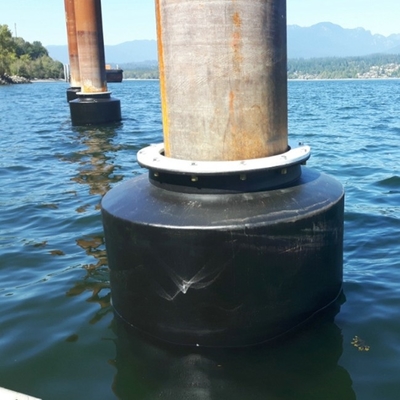

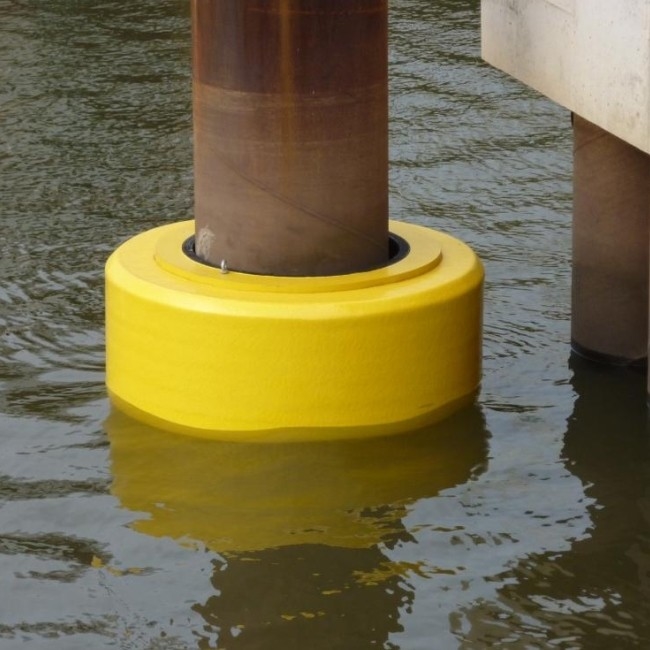

Donut fenders float and rotate around a steel monopile. Their foam body provides buoyancy and energy absorption. The steel core has low friction UHMW-PE stave bearings so it moves freely with the rise and fall of the tide.

Low rolling resistance means Jerryborg Donut fenders are ideal for berth corners, lock entrances, guiding structures and anywhere that ships warp along the berth.

Submersible systems are also available for submarine docking operations.

*High energy closed-cell foam body

*Heavy duty inner steel core

*Reinforced polyurethane skin

*Rises and falls with water level

*Low rolling resistance

*Long life UHMW-PE bearings

*Simple and fast installation

*Custom colours and designs available

*Minimal maintenance Company profile

Dimensions and Performance

Donuts are available in many other diameters and heights, different fender/pile ratios and to suit other pile diameters. Please ask for details. Standard tolerance ±15%. Table performance values are per 1000mm flat height. Performance is proportional to flat height. Performances are at deflections of 60% of Donut wall thickness.

[Units: mm, kN/m, kJ/m]

Material

100% closed cell macromolecule elastic foam

They mainly are 100% closed cell EVA foam, according to targeted use. EVA foams are resilient, closed cells to avoid water absorption and are producted either by rolls or blocks. Those elements are glued or thermobounded to constitute monolithic cocon or core, then tooled to requested shape before being encapsulated by tough reinforced SPUA coating matrix as here under.

Technical reinforcement cord fabric

They are applied according to building rules of soft composites reinforcement to strengthen the “matrix” and constitute the encapsulating coating for Jerryborg’s fenders, buoys and floats, etc. The main reinforcement fabric in Jerryborg is 1480dtex/3 chinlon tyre cord, which is widely used in pneumatic fender and tire products.

Product Display

Company profile

Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Jerryborg Marine Machinery Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.

With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Jerryborg Marine Machinery Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with partners from all over the world.

Production Facilities

Foam fender is filled with high density foam,which is widely used in docks, ships, boats and vessels. High energy-absorption, corrosion resistance as well as anti-tearing can protect the docks and all the ships well when berthing.
