Product Details:
|
| Product Name: | Pneumatic Fender | Color: | White, Red, Black |
|---|---|---|---|
| Application: | Ship Docking | Weight: | 25KG~2700KG |
| Standard: | ISO17357:2014 | Feature: | High Strength |
| Advantage: | Abrasiaon Resistance | Material: | Rubber |
| Diameter: | 500 - 4 500mm | Length: | 1 000 - 12 000mm |
| Highlight: | submarine pneumatic fender,useful ship protection pneumatic fender,submarine hydro-pneumatic rubber fender |
||
Submarine Hydro Penumatic Fender

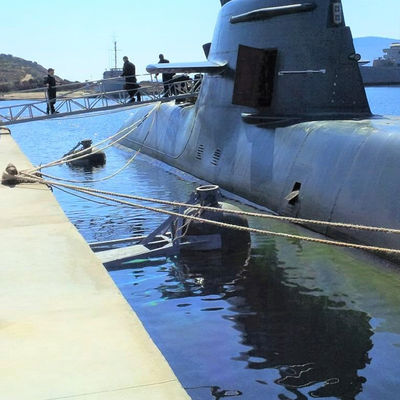

Submarines and other vessels which contact fenders below waterline require a unique solution.Hydor-pneumatic fenders are specially adapted to this application.The fender body is partially water-filled,then pressurised with air and ballasted to make it stand vertically, fender draft and performance can be tuned by altering the water :air ratio and inflation pressure.
Hydro-pneumatic rubber fender also made up by rubber and synthetic-tyre-cord, and also has outer rubber,layer-cord and inner rubber.It is also been vulcanized together to withstand tension and pressure and other forces.
Outer rubber: Cover outside of the fender to protect cord layer and inner rubber from other external forces. It has high tensile resistance,tear resistance and wear resistance.
Synthetic-tyre-cord: Maintain the internal air pressure of the fender and strengthen the strength of fender. It can make fenders be more pressure-resistant and small deformation.
Inner rubber: Seals the pressurized air inside the fender to prevent air leakage. It can also keep the inner pressure of the fender.
Advantages of JRB pneumatic fenders:
| 1 Performance can be adjusted by altering the air-water ratio |
| 2 Required draft can be adjusted |
| 3 Low hull pressures |
| 4 Self-adjustment during tidal variation |
| 5 Low installation and maintenance cost |
Performance Table
|
SIZE * D
|
INITERNAL
PRESSURE
|
BODY WEIGHT
|
SAFETY VALVE PRESSURE SETTING
|
TESTING PRESSURE
|
INITERNAL
PRESSURE
|
BODY WEIGHT |
SAFETY VALVE PRESSURE SETTING
|
TESTING PRESSURE |
|
mm(D) * mm(L)
|
kpa
|
kg
|
kpa
|
kpa
|
kpa
|
kg
|
kpa
|
kpa
|
|
1700 *7200
|
50
|
940
|
|
200
|
80 | 1140 | 250 | |
|
2000 * 6000
|
50
|
930
|
|
200
|
80 | 1100 | 250 | |
|
2500 * 5500
|
50
|
1300
|
175
|
250
|
80 | 1460 | 230 | 300 |
|
2500 * 7700
|
50
|
1854
|
175
|
250
|
80 | 2030 | 230 |
300
|
|
2500 * 9100
|
50
|
2300
|
175
|
250
|
80 | 2480 | 230 |
300
|
|
3300 * 6500
|
50
|
2200
|
175
|
250
|
80 | 2520 | 230 | 300 |
|
3300 * 8600
|
50
|
3140
|
175
|
250
|
80 | 3350 | 230 | 300 |
|
3300 * 10600
|
50
|
4200
|
175
|
250
|
80 | 4700 | 230 | 300 |
|
4500 * 9000
|
50
|
5000
|
175
|
250
|
80 | 5500 | 230 | 300 |
|
4500 * 11000
|
50
|
5600
|
175
|
250
|
80 | 6100 | 230 | 300 |
|
4500 * 12000
|
50
|
7000
|
175
|
250
|
80 | 7600 | 230 | 300 |
Applications
