ISO17357 50 Kpa 80 Kpa Yokohama Type Inflatable Pneumatic Fender

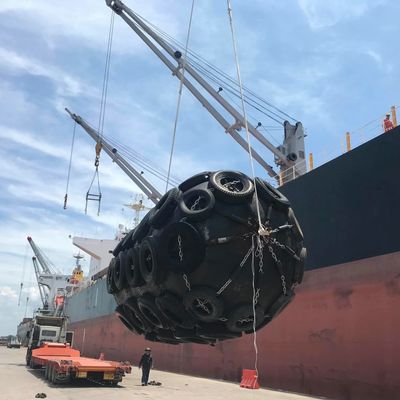

Large Image : ISO17357 50 Kpa 80 Kpa Yokohama Type Inflatable Pneumatic Fender

Product Details:

Place of Origin:	China
Brand Name:	Jerryborg
Certification:	ISO17357 BV CCS ABS GL LR DVN SGS KR RINA
Model Number:	pnrumatic fender type

Payment & Shipping Terms:

Minimum Order Quantity:	negotiable
Price:	negotiable
Packaging Details:	nude packing
Delivery Time:	10-20 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000 pieces per year

Contact Now

ISO17357 50 Kpa 80 Kpa Yokohama Type Inflatable Pneumatic Fender

Description

Product Name:	Yokohama Floating Rubber Fender	Material:	Natural Rubber
Color:	Black	Diameter:	0.5m~4.5m
Length:	1m~12m	Initial Pressure:	50 Kpa、80 Kpa
Usage:	STS ，STD Etc.
High Light:	Yokohama fender , Yokohama type fender , Yokohama pneumatic docking fender

Yokohama Pneumatic Fenders

Pneumatic Fenders are ideal for permanent and semi-permanent port applications and for offshore ship-to-ship transfers. They are manufactured according to ISO17357-1:2014. Fenders are available in diameters ranging from 300 mm to 4,500 mm and lengths ranging from 500 mm to 12,000 mm, as well as special sizes.

ISO17357 50 Kpa 80 Kpa Yokohama Type Inflatable Pneumatic Fender 0

Advantages of JRB pneumatic fenders:

A versatile and well proven design. JRB pneumatic fenders are available as sling type or with chain &tyre nets to suit a variety of inshore and offshore applications.

• ISO 17357 certified

• Guaranteed energy absorption

• Low hull pressures

• Chain tyre net and Sling type

• Thick skin construction

• Good angular performance

Fender Type

ISO17357 50 Kpa 80 Kpa Yokohama Type Inflatable Pneumatic Fender 1

PNEUMATIC FENDER DIMENSIONS AND PERFORMANCE VALUES

IP50	Performance			Body Only	Fender Weight Chain Net (excl body)	Sling Type	Pressures		Body Thickness	Mooring Chain Diameter
IP50	Energy (GEA)	Reaction (at GEA)	Pressure (at GEA)	Body Only	Fender Weight Chain Net (excl body)	Sling Type	Relief Valve	Proof Test	Body Thickness	Mooring Chain Diameter
Dia. Length (mm)	kJ	kN	kPa	kg	kg	kg	kPa	kPa	mm	mm
Φ300 x 600L	0.5	24	134	15	-	20	-	200	12	13
Φ500 x 1000L	6	64	132	24	121	35	-	200	12	16
Φ600 x 1000L	8	74	126	28	132	39	-	200	12	16
Φ700 x 1500L	17	137	135	50	165	60	-	200	13	16
Φ800x 1500L	24	158	132	64	280	72	-	200	14	16
Φ1000x1500L	33	182	122	80	220	107	-	200	14	16
Φ1000 x 2000L	46	257	132	97	242	124	-	200	14	16
Φ1200 x 2000L	64	297	126	144	352	171	-	200	14	16
Φ1200 x 3000L	109	482	134	250	435	280	-	200	14	16
Φ1350 x 2500L	104	427	130	220	385	264	-	200	15	16
Φ1500 x 2500L	125	464	126	243	484	287	-	200	16	19
Φ1500 x 3000L	156	579	132	275	583	319	-	200	16	19
Φ1500 x 4000L	230	815	130	330	690	380	-	200	16	19
Φ1700 x 3000L	195	639	128	319	638	363	-	200	16	19
Φ1700 x 7200L	516	1621	133	760	N/A	810	-	200	16	22
Φ2000 x 3000L	260	727	122	403	990	469	-	200	16	22
Φ2000 x 3500L	314	875	128	445	1056	502	-	200	17	22
Φ2000 x 4000L	361	1020	125	490	1150	540	-	200	16	22
Φ2000 x 6000L	611	1631	136	658	1650	720	-	200	16	26
Φ2500 x 4000L	676	1381	137	992	1364	1188	175	250	18	26
Φ2500 x 5500L	962	2019	148	1199	2035	1452	175	250	18	32
Φ2500 x 9100L	1631	3482	140	2150	3467	2230	175	250	18	32
Φ3000 x 5000L	1136	2021	154	1520	1800	1640	175	250	19	32
Φ3300 x4500L	1198	1884	130	1606	1881	2024	175	250	20	36
Φ3300 x 6500L	1850	3015	146	2057	2827	2475	175	250	20	38
Φ3300 x 10600L	3128	5257	158	2816	5126	3366	175	250	22	48
Φ4500 x 7000L	3302	3796	133	3740	4290	3880	175	250	24	48
Φ4500 x 9000L	4847	5747	146	4334	5929	-	175	250	24	50
Φ4500 x 12000L	6602	7984	154	5269	7689	-	175	205	24	58

Detailed Image

How to Chose Pneumatic Fender?

Selection of ISO17357 pneumatic fenders for small and medium-sized ships:

Tonnage(T)	Recommended Dimension:Diameter x Length(m)	Types of Ship
50	0.5 × 1.0	fishing boat
100	0.7 × 1.5~1.0 × 1.5	fishing boat
200	1.0 × 1.5~1.2 × 2.0	fishing boat, towboat
300-500	1.2 × 2.0~1.5 × 2.5	fishing vessel, towboat
1000	1.5 × 2.5~1.5 × 3.0	towboat, cargo ship
3000	2.0 × 3.0~2.0 × 3.5	cargo ship, marine fishing boat
10000	2.0 × 3.5~2.5 × 4.0	freighter

Selection of ISO17357 pneumatic fenders for large tonnage ships:

Dead Weight Tonnage (DWT)	Assumed Landing Speed(M/S)	Effective Kinetic Energy (KN.M)	Dimension: Diameter×Length(m)
200000	0.15	1890	3.3 x 6.5
150000	0.15	1417	3.3 x 6.5
100000	0.15	945	3.0 x 5.0
85000	0.17	1031	3.0 x 6.0
50000	0.18	680	2.5 x 5.5
40000	0.20	672	2.5 x 5.5
30000	0.22	609	2.5 x 4.0
20000	0.25	525	2.5 x 4.0
15000	0.26	425	2.5 x 4.0
10000	0.28	329	2.0 x 4.0
5000	0.33	228	2.0 x 3.5

Installtion Method

FENDER SIZE		CHAIN TIRE NET (CTN) FENDERS					W
FENDER SIZE		A	B	C	D	E
DIAMETER	LENGTH	A	B	C	D	E
1000	1500	825	940	1340	345	515	1950
1200	2000	1100	1130	1610	305	510	2600
1500	2500	1485	1410	2010	270	525	3250
2000	3500	1965	1880	2680	375	715	4550
2500	4000	2495	2355	3355	430	855	5200
3300	6500	3365	3110	4430	500	1065	8450
4500	9000	4605	4240	6040	665	1435	11700

FENDER SIZE		SLING FENDERS					W
FENDER SIZE		A	B	C	D	E
DIAMETER	LENGTH	A	B	C	D	E
1000	1500	1020	940	1340	150	320	1950
1200	2000	1265	1130	1610	140	345	2600
1500	2500	1575	1410	2010	180	435	3250
2000	3500	2125	1880	2680	215	555	4550
2500	4000	2675	2355	3355	250	675	5200
3300	6500	3605	3110	4430	260	825	8450
4500	9000	4935	4240	6040	335	1105	11700

[UNITS:MM]

ISO17357 50 Kpa 80 Kpa Yokohama Type Inflatable Pneumatic Fender 4

Applications

1. oil tankers, LNG and other ships are transported by ship at sea

2. dock operation and ship berthing

3. crashproof of temporary or permanent coastal defense

4. crashproof buffer for offshore platforms and buildings

ISO17357 50 Kpa 80 Kpa Yokohama Type Inflatable Pneumatic Fender 5
