Yokohama Pneumatic Docking Fender High Pressure 50 Kpa Inflatable Fender

Description

Product Name:	50 Kpa Inflatable Rubber Fender	Material:	Natural Rubber
Color:	Black	Diameter:	0.5m~4.5m
Length:	1m~12m	Initial Internal Pressure:	50 Kpa、80 Kpa
Application Cases:	Ship-to-ship (STS) Transfer Operations, Terminals, Etc.
High Light:	high quality pneumatic fender , marine Yokohama fender , 50 Kpa pneumatic docking fender

Yokohama pneumatic docking fender high pressure 50 kpa inflatable fender

The Pneumatic Fender (Yokohama Fender) is an abrasion-resistant rubber fender filled with high pressure air. It can easily be deflated which allows simple and cost effective relocation and re-commissioning in other locations.

Pneumatic Fenders are available in diameters ranging from 500 mm to 4,500 mm and lengths ranging from 1000 mm to 12,000 mm, as well as special sizes.
All sizes are available as sling-type or with a heavy duty chain & tire net.

Yokohama Pneumatic Docking Fender High Pressure 50 Kpa Inflatable Fender 0

Advantages of yokohama pneumatic fenders:

A versatile and well proven design. JRB pneumatic fenders are available as sling type or with chain &tyre nets to suit a variety of inshore and offshore applications.

1. Safety and Reliability

2 .No Deterioration or Variation in Performance

3. Advantages at Inclined Berthing

4 .Most Cost Competitive System

5. Soft Reaction Force for Ship and Jetty Structure

6. Lower Mooring Forces under Rough Weather Conditions

7. Stronger against Shearing Force

8 .Adaptable to the Tide

9. Simple and Low Cost Installation

10. Low Maintenance Cost

11 .Shipping Cost Minimization

Pneumatic Fender Type

Yokohama Pneumatic Docking Fender High Pressure 50 Kpa Inflatable Fender 1

BASIC CONSTRUCTION

The Floating-type Yokohama Pneumatic Rubber Fenders are kind of a cylindrical air bag with hemispherical heads at both ends. Basic body construction of this fender consists of an outer rubber layer, cord layers and an inner rubber layer. All of these are vulcanized together, and then proven by hydraulic pressure test.

1. Outer Rubber

The outer rubber layer protects the cord layers and inner rubber layer from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage as shown in Table 5-1. Standard color is black, but other colors such as grey and creamy white are available on request.

2. Synthetic-tire-cord Layer

The reinforcement cord layers, which are made of Synthetic-tire-cord, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly. As the main fibers of the synthetic-tire-cord are not braided like synthetic canvas fabric or synthetic belt fabric as shown in Fig.5-2, there are advantages for its fatigue-resistance performance and pressure-holding performance.

3. Inner Rubber

The inner rubber layer seals the air inside, utilizing a compound equivalent to that of the liner or tube of an automobile tire. The specifications are shown in Table 5-1.

Detailed Imagine

PNEUMATIC FENDER DIMENSIONS AND PERFORMANCE VALUES

Pneumatic 50 (Metric)

Nominal Size Diameter x Length	Initial Internal Pressure	Guaranteed Energy Absorption (GEA)	Reaction Force at GEA	Hull Pressure at GEA	Safety Valve Setting pressure	Testing Pressure	Weight of Net Type (Type I)				Weight of Sling Type (Type n)
		Guaranteed Energy Absorption (GEA)	Reaction Force at GEA	Hull Pressure at GEA			Approx. Fender Body Weight	Approx. Weight of Net
		E	R	P			Approx. Fender Body Weight	Chain Net	Wire Net	Synthetic Fiber Net
(mm x mm)	(kPa)	(kNm)	(kN)	(kPa)	(kPa)	(kPa)	(kg)	(kg)	(kg)	(kg)	(kg)
500 x 1000	50	6	64	132	-	200	22	110	30	20	28
600 x 1000	50	8	74	126	-	200	25	120	30	22	32
700 x 1500	50	17	137	135	-	200	45	150	40	37	51
1000 x 1500	50	32	182	122	-	200	73	200	80	51	89
1000 x 2000	50	45	257	132	-	200	88	220	140	57	104
1200 x 2000	50	63	297	126	-	200	131	320	190	68	147
1350 x 2500	50	102	427	130	-	200	200	350	200	-	229
1500 x 3000	50	153	579	132	-	200	250	530	350	-	279
1700 x 3000	50	191	639	128	-	200	290	580	440	-	320
2000 x 3500	50	308	875	128	-	200	405	960	640	-	459
2500 x 4000	50	663	1381	137	175	250	902	1240	910	-	1080
2500 x 5500	50	943	2019	148	175	250	1090	1850	1160	-	1320
3300 x 4500	50	1175	1884	130	175	250	1460	1710	1270	-	1800
3300 x 6500	50	1814	3015	146	175	250	1870	2570	1910	-	2180
3300 x 10600	50	3067	5257	158	175	250	2560	4660	3300	-	3060
4500 x 9000	50	4752	5747	146	175	250	3940	5390	3520	-	4560
4500 x 12000	50	6473	7984	154	175	250	4790	6990	5190	-	-

Pneumatic 80 (Metric)

Nominal Size Diameter x Length	Initial Internal Pressure	Guaranteed Energy Absorption (GEA)	Reaction Force at GEA	Hull Pressure at GEA	Safety Valve Setting pressure	Testing Pressure	Weight of Net Type (Type I)				Weight of Sling Type (Typen)
		Guaranteed Energy Absorption (GEA)	Reaction Force at GEA	Hull Pressure at GEA			Approx. Fender Body Weight	Approx. Weight of Net
		E	R	P			Approx. Fender Body Weight	Chain Net	Wire Net	Synthetic Fiber Net
(mm x mm)	(kPa)	(kNm)	(kN)	(kPa)	(kPa)	(kPa)	(kg)	(kg)	(kg)	(kg)	(kg)
500 x 1000	80	8	85	174	-	250	24	110	30	20	30
600 x 1000	80	11	98	166	-	250	27	120	30	22	34
700 x 1500	80	24	180	177	-	250	47	150	40	37	53
1000 x 1500	80	45	239	160	-	250	76	200	80	51	92
1000 x 2000	80	63	338	174	-	250	92	220	140	57	108
1200 x 2000	80	88	390	166	-	250	135	320	190	68	151
1350 x 2500	80	142	561	170	-	250	205	350	200	-	234
1500 x 3000	80	214	761	174	-	250	277	530	350	-	306
1700 x 3000	80	267	840	168	-	250	316	580	440	-	346
2000 x 3500	80	430	1150	168	-	250	413	970	690	-	467
2500 x 4000	80	925	1815	180	230	300	1010	1250	910	-	1190
2500 x 5500	80	1317	2653	195	230	300	1230	1860	1170	-	1460
3300 x 4500	80	1640	2476	171	230	300	1720	1720	1280	-	2050
3300 x 6500	80	2532	3961	191	230	300	2200	2580	1990	-	2530
3300 x 10600	80	4281	6907	208	230	300	3030	4660	3300	-	3520
4500 x 9000	80	6633	7551	192	230	300	4380	5440	3580	-	-
4500 x 12000	80	9037	10490	202	230	300	5330	7030	5230	-	-

GENERIC PERFORMANCE CURVE PNEUMATIC FENDERS

Yokohama Pneumatic Docking Fender High Pressure 50 Kpa Inflatable Fender 5

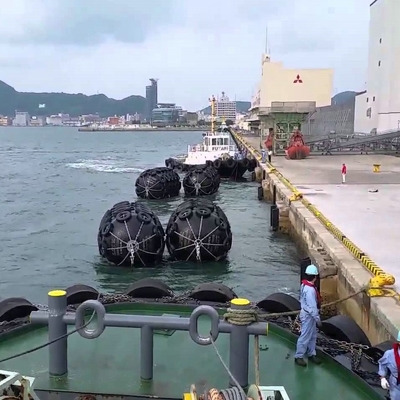

Applications Cases

►In ports with extreme tidal variations

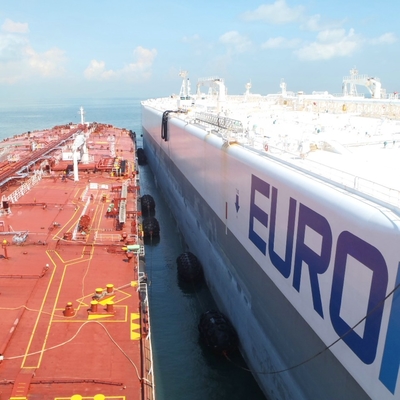

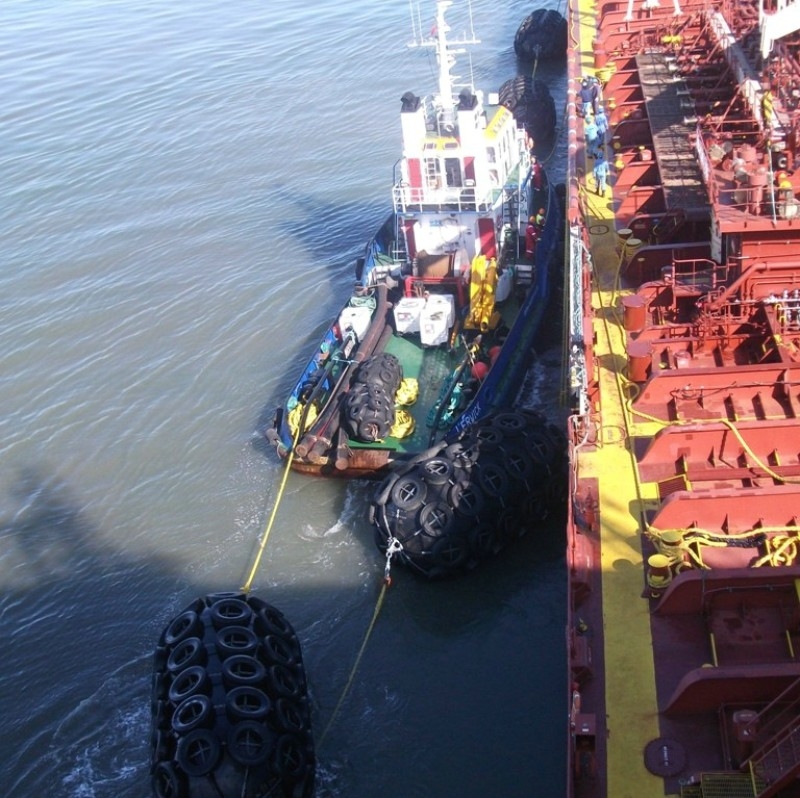

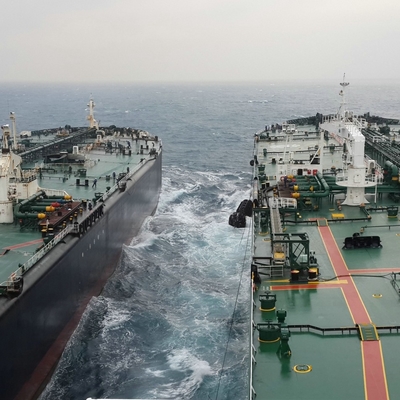

►Ship-to-ship operations

►Oil & Gas (typically FSRU)

►Temporary berthing

Yokohama Pneumatic Docking Fender High Pressure 50 Kpa Inflatable Fender 6

Shipping Method

In order to minimize the shipping cost of Yokohama Pneumatic Rubber Fenders, the fenders are usually packed and shipped in containers or on pallets in vacuumed and folded down state.
