Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting

Certification
China Qingdao Jerryborg Marine Machinery Co., Ltd certification
China Qingdao Jerryborg Marine Machinery Co., Ltd certification
Customer Reviews
I’m late in sending this, but wanted to thank Jerryborg Marine for the great job they did on the pneumatic fenders that they fabricated for me. They work perfectly and serve a long time. Very glad I found them.

—— Deepark-Dolphine Rubber

The guys over at Jerryborg Marine not only provided quick estimates, an honest timetable, and professional courtesy, but also quality work that exceeds their fair pricing. I recommend them for anyone's next project.

—— Thanh Dong-Vietnam Ecomarine

I choose Jerryborg Marine because I simply could not find any other provider that offered all the marine products I needed under one platform, such as pneumatic fenders, anchors, chains, steel wire ropes, shackles.

—— Alessandro Bitocchi-PSG AB

I have a problem with products from another vendor. The engineer of Jerryborg Marine is very enthusiastic and helps me a lot to solve the problem. I really appreciate their professional work and experts team.

—— Peter.S-USA Offshore Rental

I'm Online Chat Now

Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting

Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting
Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting

Large Image :  Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting

Product Details:
Place of Origin: Shandong, China
Brand Name: Jerryborg
Certification: ISO: 9001-2015
Model Number: JRB-RA
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: as per customer requirement
Delivery Time: 10-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per year

Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting

Description
Material: Rubber Color: Black
Brand: Jerryborg Function: Ship, Launching, Salvage
Classification Society Certification: BV, CCS, ABS, GL, LR, DVN, SGS, KR, RINA Warranty: 24 Months
Package: Customizd OEM: Permitted
High Light:

pneumatic rubber airbag

,

natural rubber airbag

,

inflatable marine salvage airbag



Marine Ship Launching Airbags Inflatable Boat Rubber Airbags



Ship Launching Airbags Description



6000 years ago, our ancestor begin to use log-rolling method to lift and move weights, which is still widely used in daily production and actual life nowadays. Marine rubber airbag is designed with soft rubber to lift and carry weights, based on log-rolling method.


Marine rubber airbag is an innovative product of Chinese own proprietary intellectual property rights. It has wide application like ship launching & upgrading, caisson lifting & moving, heavy weights lifting, underwater-engineering buoyancy aid. The marine rubber airbag is not limited to space and heavy machinery, which could efficiently shorten the construction period and save lots of funds.

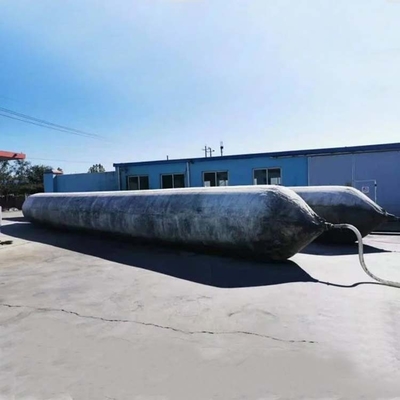

Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting 0



Ship Launching Airbags Structure



Ship launching airbags are composed of the outer rubber layer, inner rubber layer, and synthetic tire cord layer. The cord layers consist of 4-10 layers which are strong enough to withstand the external forces. the ship launching airbag is designed to be a cylindrical body with two heads. Jerryborg also supplies the accessories like pull ring, pressure gauge, three-way piece, ball valve, and connecting pipe.

Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting 1

Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting 2



Ship Launching Airbags Features



  • cost-effective
  • portable and easy installation
  • high capacity against compression and twisting
  • big carrying capacity
  • anti-aging resistance with a lifespan
  • new design of anti-explosion construction
  • beyond space limitation



Ship Launching Airbags Specification



Series Model Diameter(m) Working Pressure(Mpa) Working Height(m) Beating Capacity(Ton/m)
0.4D 0.5D 0.6D 0.4D 0.5D 0.6D
S1



S10

0.8 0.20 0.32 0.40 0.48 15.1 12.6 10.0
1 0.16 0.40 0.50 0.60 15.1 12.6 10.0
1.2 0.14 0.48 0.60 0.72 15.8 13.2 10.6
1.5 0.11 0.60 0.75 0.90 15.5 13.0 10.4
S11 0.8 0.19 0.32 0.40 0.48 14.3 11.9 9.5
1 0.15 0.40 0.50 0.60 14.1 11.8 9.4
1.2 0.13 0.48 0.60 0.72 14.7 12.2 9.8
1.5 0.10 0.60 0.75 0.90 14.1 11.8 9.4
S12 0.8 0.24 0.32 0.40 0.48 18.1 15.1 12.1
1 0.19 0.40 0.50 0.60 17.9 14.9 11.9
1.2 0.16 0.48 0.60 0.72 18.1 15.1 12.1
1.5 0.13 0.60 0.75 0.90 18.4 15.3 12.2
1.8 0.10 0.72 0.90 1.08 17.0 14.1 11.3
S2 S20 1 0.24 0.40 0.50 0.60 22.6 18.8 15.1
1.2 0.20 0.48 0.60 0.72 22.6 18.8 15.1
1.5 0.16 0.60 0.75 0.90 22.6 18.8 15.1
1.8 0.13 0.72 0.90 1.08 22.0 18.4 14.7
2 0.12 0.80 1.00 1.20 22.6 18.8 15.1
S21 1 0.27 0.40 0.50 0.60 25.4 21.2 17.0
1.2 0.23 0.48 0.60 0.72 26.0 21.7 17.3
1.5 0.18 0.60 0.75 0.90 25.4 21.2 17.0
1.8 0.15 0.72 0.90 1.08 25.4 21.2 17.0
2 0.14 0.80 1.00 1.20 26.4 22.0 17.6
S22 1 0.31 0.40 0.50 0.60 29.2 24.3 19.5
1.2 0.26 0.48 0.60 0.72 29.4 24..5 19.6
1.5 0.20 0.60 0.75 0.90 28.3 23.6 18.8
1.8 0.17 0.72 0.90 1.08 28.8 24.0 19.2
2 0.15 0.80 1.00 1.20 28.3 23.6 18.8
2.5 0.12 1.00 1.25 1.50 28.3 23.6 18.8
S3 S30 1 0.35 0.40 0.50 0.60 33.0 27.5 22.0
1.2 0.29 0.48 0.60 0.72 32.8 27.3 21.9
1.5 0.23 0.60 0.75 0.90 32.5 27.1 21.7
1.8 0.19 0.72 0.90 1.08 32.2 26.8 21.5
2 0.17 0.80 1.00 1.20 32.0 26.7 21.4
2.5 0.14 1.00 1.25 1.50 33.0 27.5 22.0



Technical Requirement


According to CB/T 3795--1996, marine rubber fender should meet the following requirements.



1. Dimensional Deviation Diameter & Effective Length Deviation: ±2% Total Length Deviation: ±4%

2. Amount of Elastic Deformation: diameter deformation amount ≤ 5% under 1.2 times working pressure.

3. Safety Factor: >4.5

4. Air Tightness: depressurization < 5% after 1hour inflation

5. Surface Quality: fairing line shape, no crack, no bubble, no double skin, no impurities, no distinct dirt and other apparent defect.

6. end part anti-explosion design




Applications

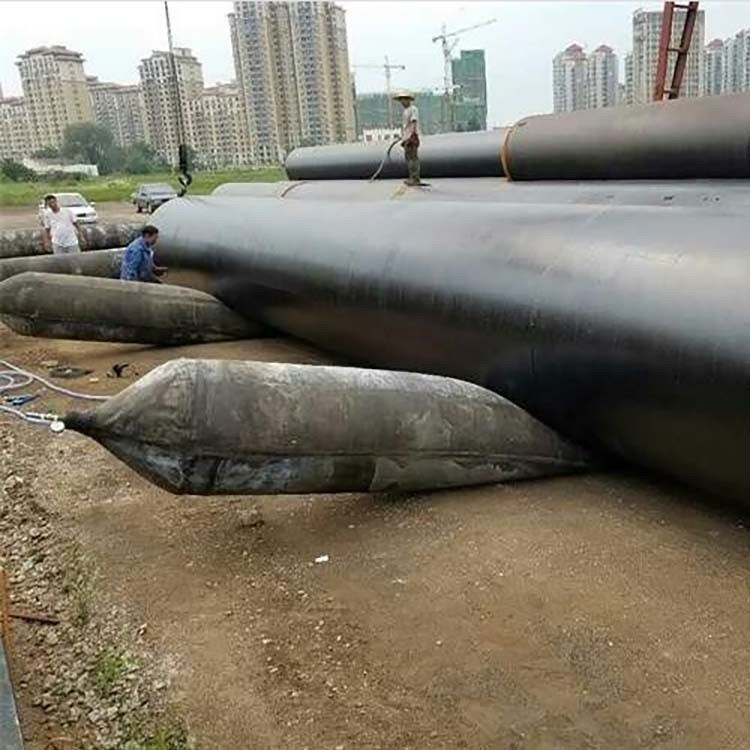

1 Ship Launching & Upgrading With more than 20 years development in China, Inflatable Upgrading Airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, Inflatable Upgrading Airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with Inflatable Upgrading Airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting 3

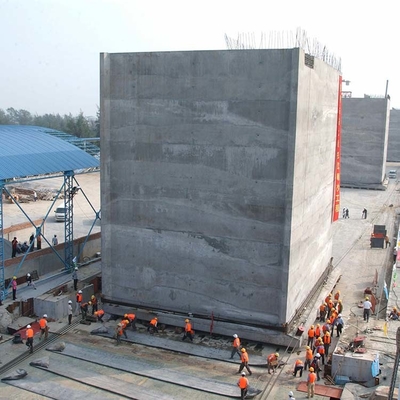

2 Weight lifting & moving Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects.
Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting 4

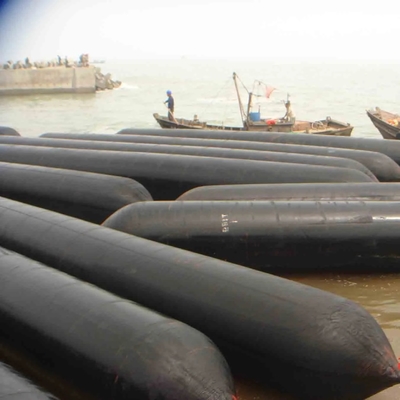

3 Buoyancy Aid & Salvage Because Inflatable Upgrading Airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting 5



Company profile



Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting 6



Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Jerryborg Marine Machinery Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.



With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Jerryborg Marine Machinery Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with partners from all over the world.



Production Facilities



Salvage ship airbag inflatable marine pneumatic rubber airbags for heavy lifting 7



FAQ



Why choose your company?



Jerryborg insists customers requirement first since founded,supply the most professional solution to meet customer's personalized requirements. And we pay great attention to quality control, high reliability is our design principle, quality control starts from beginning, high quality parts,advanced technology and equipment are used, products are designed,manufactured and tested as ISO9001:2015 requirements. All procedures are strictly controlled and completely meet requirements of ship surveyors such as CCS, BV, RS, ABS, LR, etc.



What are Jerryborg's highlights?



We provide all types of fenders, such as Super Cell Fender, Super Cone Fender, Arch Fender, Cylindrical Fender, D Type Fender, etc. We also offer clients with a design of a complete fender system and installation for port facility.



What are the selling points about your products?



A superior fender product can protect both the vessel and the berthing structure berthed against, preventing any damage and save on repair costs.Our rubber fenders are manufactured in accordance with PIANC guidelines and come in a range of compounds to suit various applications. In addition, Jerryborg can produce according to drawings and provide technical advisory services free of charge.



Could you tell me more details about this type of product?



Foam fender is filled with high density foam,which is widely used in docks, ships, boats and vessels. High energy-absorption, corrosion resistance as well as anti-tearing can protect the docks and all the ships well when berthing.
