Features of the Navigation Buoys
A.Highly Environmental Protection
1.The color of floating body is imported from Switzerland, which is environmental and non-polluting. 2.The buoy is made by steel and filled with close-cell polyurethane foam inside, which has strong chemical stability and durability. It won’t be decomposed in sea water even after tens of years.
B.Free of Maintenance
1. no need to repaint within 10 years 2. no attaching ocean organism, free of labour to eradicate aquatic creatures 3. balance metal is dealt with anti-corrosive treatment to avoid corrosion.C.Good Anti Collision Capability
1.The floating body has strong strength and elasticity. Which could absorb impact force and recover to original shape immediately after getting outer crashing force 2.The floating body is light weight with smaller inertia. It could step to original position and absorb impact force soon after crashing and avoid crack or damage. 3.Upper frame is made of special composite material, which improves the buoy service life, safety and anti-impact capability.D.Long Service Life
1.The floating body has strong capability of corrosion resistance, ultraviolet resistance, chemical stability and aging resistance. 2.Metal frame is dealt with special anti-rust and anti-septic treatment, which can serve more than 20 years. Lifting lug of anchor chain is adopting special designed structure with Max loading weight up to 60 tons.
Dimensions Table
| Model | Floater Diameter(mm) | Installation Water Depth(mm) | Free-board (mm) | Focal Plane Height(mm) | Net Weight(kg) | Height(mm) | Reserve Buoyancy(kg) |
| ATN800 | 800 | 1.5-10 | 450 | 1580 | 195 | 2900 | 230 |
| ATN1200 | 1200 | 2-20 | 510 | 2040 | 550 | 3380 | 570 |
| ATN1500 | 1500 | 3-35 | 610 | 2740 | 760 | 4280 | 974 |
| ATN1800 | 1800 | 5-70 | 700 | 3031 | 1748 | 5034 | 1500 |
| ATN2100 | 2100 | 10-80 | 800 | 3518 | 1900 | 5757 | 2450 |
| ATN2400 | 2400 | 10-90 | 960 | 4527 | 2881 | 6930 | 3950 |
| ATN3050 | 3050 | 20-120 | 1114 | 5164 | 3490 | 7610 | 7646 |
| ATNB3500 | 3500 | 20-150 | 1240 | 6090 | 3863 | 8520 | 11380 |

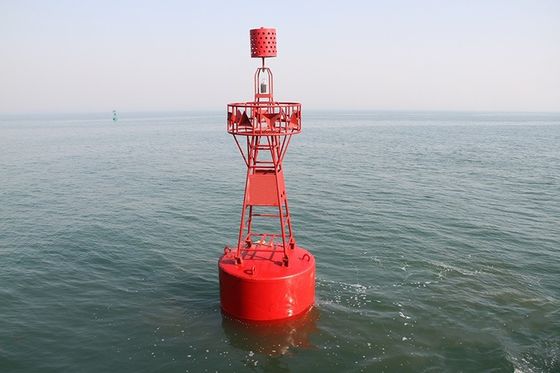

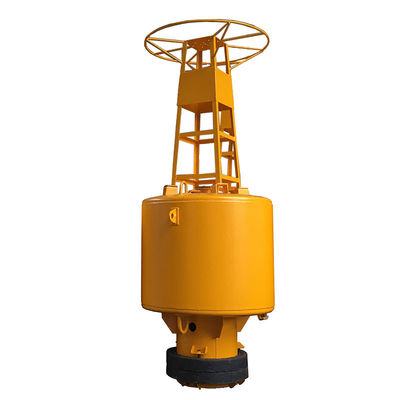

Product Display
Company Profile
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Jerryborg Marine Machinery Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Jerryborg Marine Machinery Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with partners from all over the world.
Production Facilities
FAQ
Why choose your company?
Jerryborg insists customers requirement first since founded,supply the most professional solution to meet customer's personalized requirements. And we pay great attention to quality control, high reliability is our design principle, quality control starts from beginning, high quality parts,advanced technology and equipment are used, products are designed,manufactured and tested as ISO9001:2015 requirements. All procedures are strictly controlled and completely meet requirements of ship surveyors such as CCS, BV, RS, ABS, LR, etc.
What are Jerryborg's highlights?
We provide all types of fenders, such as Super Cell Fender, Super Cone Fender, Arch Fender, Cylindrical Fender, D Type Fender, etc. We also offer clients with a design of a complete fender system and installation for port facility.
What are the selling points about your products?
A superior fender product can protect both the vessel and the berthing structure berthed against, preventing any damage and save on repair costs.Our rubber fenders are manufactured in accordance with PIANC guidelines and come in a range of compounds to suit various applications. In addition, Jerryborg can produce according to drawings and provide technical advisory services free of charge.
Could you tell me more details about this type of product?
Our buoys product range have a broad range of sizes and depths. The buoys consist of a unit, and are adapted for use where the need for buoyancy is limited.
