Marine plastic warning buoy steel floating mooring buoy navigation buoy

Marine plastic warning buoy steel floating mooring buoy navigation buoy
Marine plastic warning buoy steel floating mooring buoy navigation buoy
Marine plastic warning buoy steel floating mooring buoy navigation buoy Marine plastic warning buoy steel floating mooring buoy navigation buoy Marine plastic warning buoy steel floating mooring buoy navigation buoy Marine plastic warning buoy steel floating mooring buoy navigation buoy Marine plastic warning buoy steel floating mooring buoy navigation buoy Marine plastic warning buoy steel floating mooring buoy navigation buoy

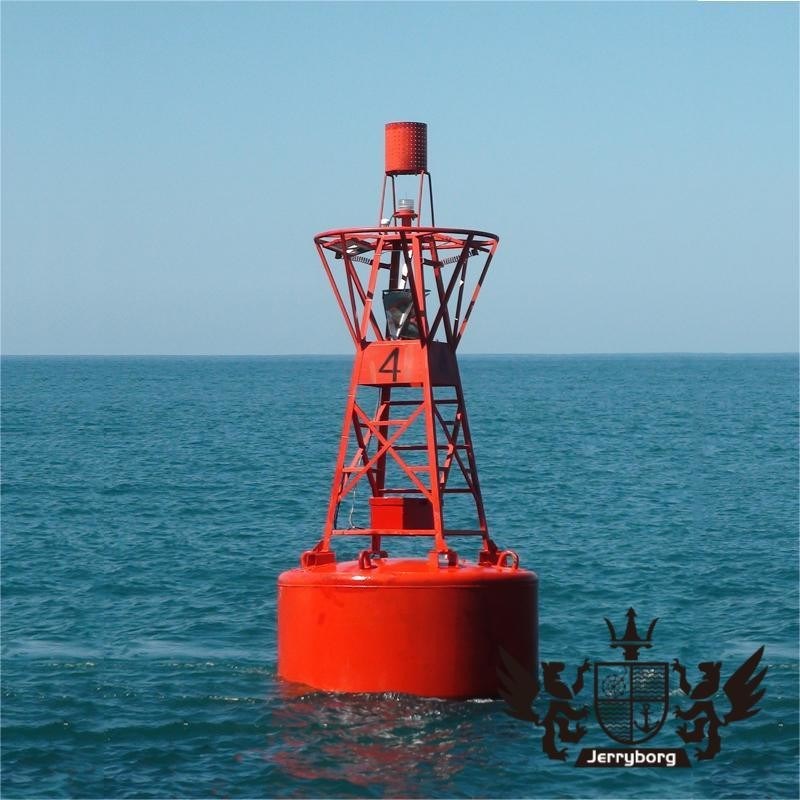

Large Image :  Marine plastic warning buoy steel floating mooring buoy navigation buoy

Product Details:
Place of Origin: Qingdao, Shandong
Brand Name: Jerryborg
Certification: ISO17357 CCS BV
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1000-$6000
Packaging Details: Nude Packing
Delivery Time: 5-8 working day
Payment Terms: T/T
Supply Ability: 5000 pieces per year

Marine plastic warning buoy steel floating mooring buoy navigation buoy

Description
Part: Floating Buoy Material: Polyethylene,EVA
Color: Customers' Requirments Size: Customized Size
Product Name: Large Mid Small Size Mooring Floats Marine Buoys Diameter: Customrized
Type: Mooring Buoy Warranty: 1 Years
Quality: High Quality Function: Mooring Buoy
High Light:

Marine plastic warning buoy steel floating mooring buoy navigation buoy

,

Diameter 800mm 2000mm HDPE Navigation Buoys Warning Buoy for Warning

,

Marine Navigation Buoy for Marine Ships and Boats Custom Warming on Water

High Quality Navigation Buoy



Brand Name Jerryborg
Application Mooring
Origin Qingdao, China



Navigation buoy refers to a kind of buoy floating on the water surface, which is anchored at a specified position to mark the channel range, indicate shoals, obstacles or indicate the surface navigation aids for special purposes. Buoys are widely used in navigation aids, and are set where it is difficult or inappropriate to set up fixed navigation aids.





The Jerryborg buoy division provides turn-key production of navigation buoys. From tooling development, raw materials selection, and production, to final testing and inspection,
Jerryborg guarantees superior quality and fast turn-around times.

Jerryborg’s buoy products are available in a wide range of configurations and sizes, and can be economically shipped worldwide.

Jerryborg navigation buoy has the advantages of good stability, long service life, energy conservation, environmental protection, economy and practicality.

This steel navigation buoy is mainly applicable to a series of places such as navigation, navigation channels, wharves, ports, etc. Buoys equipped with lamps are called light buoys, which can be equipped with solar beacon lights, and some auxiliary equipment such as remote control and telemetry system can be configured as required. The steel navigation buoy complies with the standard of "Navigation Aids On Water In China Sea Area" (GB4696-1999). The shell of the solar beacon lamp is made of aluminum alloy, and the lamp has the characteristics of high luminous intensity, long service life, small volume, light weight, convenient installation and debugging, etc.







Feature

1. Single piece float


2. Complete unit - ready for immediate installation

3. High visibility red, green, white or yellow as per IALA recommendations

4. 316-grade stainless steel eye bolt for strong mooring chain attachment point

5. Excellent buoyancy & stability



Marine plastic warning buoy steel floating mooring buoy navigation buoy 0

Marine plastic warning buoy steel floating mooring buoy navigation buoy 1Marine plastic warning buoy steel floating mooring buoy navigation buoy 2Marine plastic warning buoy steel floating mooring buoy navigation buoy 3



Specification

Model
Floater Diameter
(mm)
Installation Water Depth
(mm)
Free-board (mm)





Focal Plane Height
(mm)







Net
Weight
(kg)





Height
(mm)





Reserve Buoyancy
(kg)



ATN800 800 1.5-10 450 1580 195 2900 230
ATN1200 1200 2-20 510 2040 550 3380 570
ATN1500 1500 3-35 610 2740 760 4280 974
ATN1800 1800 5-70 700 3031 1748 5034 1500
ATN2100 2100 10-80 800 3518 1900 5757 2450
ATN2400 2400 10-90 960 4527 2881 6930 3950
ATN3050 3050 20-120 1114 5164 3490 7610 7646
ATNB3500 3500 20-150 1240 6090 3863 8520 11380





Marine plastic warning buoy steel floating mooring buoy navigation buoy 4

Application Fields



  1. Ship berthing, quarantine anchorage, no sail zone, military exercise zone, etc;

  2. Offshore operation area, marine data detection, channel survey, hydrological survey, diving, salvage, offshore engineering construction (drilling), marine development, mud dumping area, velocity field, compass correction field, underwater structures, cables, pipelines, water inlets, water outlets, etc;

  3. Traffic separation, separation strip, etc. can be used when conventional navigation aids are used to mark traffic separation, which may cause confusion;

  4. Entertainment area, sports training area, Marine Amusement Park, beach, etc;

  5. Aquatic operation area, aquatic fixed network operation area and aquaculture farm, etc.



Company Profile


Marine plastic warning buoy steel floating mooring buoy navigation buoy 5

Jerryborg Marine Machinery Co., Ltd is a leading international marine products manufacturer & distributor with 15+ years of rich experience in production of marine docking & mooring systems. Jerryborg Marine Machinery Co., Ltd, headquartered in Qingdao, China, is committed to rubber fenders and mooring buoys production, R&D and sales. The Jerryborg Marine is equipped with production facilities for high-quality rubber products, ship launching airbags and foam fenders, Yokohama type pneumatic rubber fender, navigation buoys, steel/EVA mooring buoy, distributing mooring ropes, steel wire ropes, marine hardware like anchor chains, anchors, etc.


The Jerryborg serves as a strategic partner of Marine Fender & Mooring Industry, providing excellent products as well as professional and technical expertise. While our true role is designer and manufacturer for marine docking & mooring systems with accessories. We value all customers as important parts of our team, supporting them like close partners. we are with them at each step of the project, from technical consulting, engineering customized fendering and mooring solutions to the manufacturing and installation of marine docking & mooring systems. Our rich experience has earned a good reputation as a dependable partner in the waterways markets, harbors, international ports, etc.

It is the mission of what our products are meant to do--creating the value of protection and safety. We offer the full range of marine fender products and marine mooring buoy products, from simple rubber products to highly engineering systems, as well as spare parts and fixings. A strong focus lies on internal manufacturing to offer high-level fenders & buoys at reasonable prices.

our fender systems are designed with an eye for the big picture to make sure our products qualified for the task, while paying attention to every little detail. Engineering advantages means that our partners can be confident in expecting the best from us in all areas.
