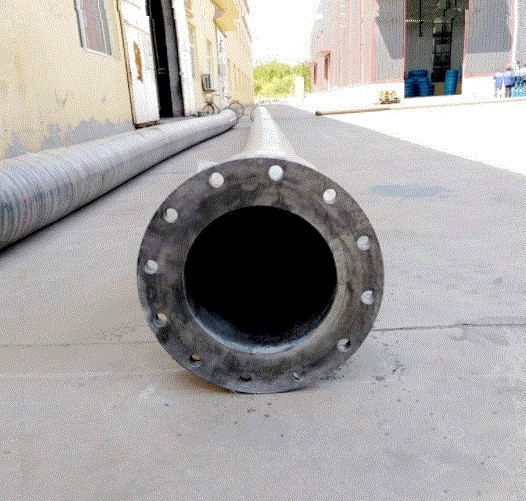

Heavy Duty Marine Oil Hose

Ship To Ship Hose With Heavy Duty For Crude Oil Transfer Under Working Pressure 21 Bar

Ship To Ship Hose

Ship to ship hoses, which means the marine oil hose, is designed for transferring crude oil, petroleum products of cargoes between vessels and oil tankers. Fully compliant with OCIMF standards, our ship to ship hoses are able to withstand abrasion and bending forces and still perform excellently at low temperatures. Furthermore, the risk of leakage or bulge is absent.

Ship to ship hoses mainly consist of inner tube, reinforcement, and cover layer. The cover layer protects the hose body from the damage of the external corrosive environment. Reinforcement is made of high tensile strength fabrics with helix steel wire which makes sure that there won’t be any cracks at a high bending angle. The inner tube is made of synthetic rubber or thermoplastic material which is resistant to oil and fuel.

Applications of Ship To Ship Hose

Ship to ship hose is widely used in transferring petroleum, crude oil, and vapours between vessels and oil tankers.

Ship To Ship Hose Advantages

Fully compliant with ISO9001, ship to ship hose is popular with the oil industry due to its excellent performance.

• Flexible and durable
• Resistant to abrasion,UV,aging,corrosion,low temperature
• Prevent water absorption
• Perform well under high pressure
• Withstand the crushing and bending force
• Bear powerful tension and torsion force
• Easy to install and maintain

Ship To Ship Hose Basic Construction

1. Inner tube: Synthetic rubber or thermoplastic material (NBR) with features of smooth and resistance to oil and fuel
2. Reinforcement layer: High tensile polyester fabric with stainless steel helix embedded
3. Cover layer: CR compound rubber resistant to abrasion, seawater, and sunlight
4. Body wire: Steel wire
5. Flange :ASTM A-105 (Max. Carbon 0.25%) , ASME B16.5

Ship To Ship Hose Specifications

1. Minimum bending radius: 4 × Nominal Diameter

2. Allowable flow velocity : 21 m/sec (70 ft/sec)

3. Fluid: Crude Oil, Liquid Petroleum Products

Here are the dimensions available as below :

For further information free to contact us.
