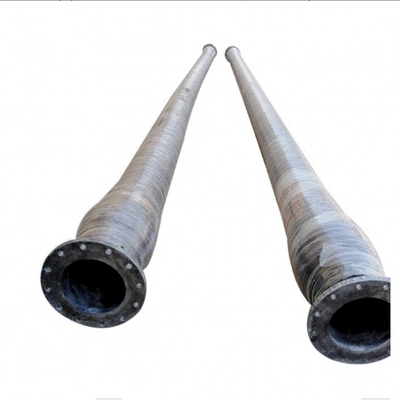

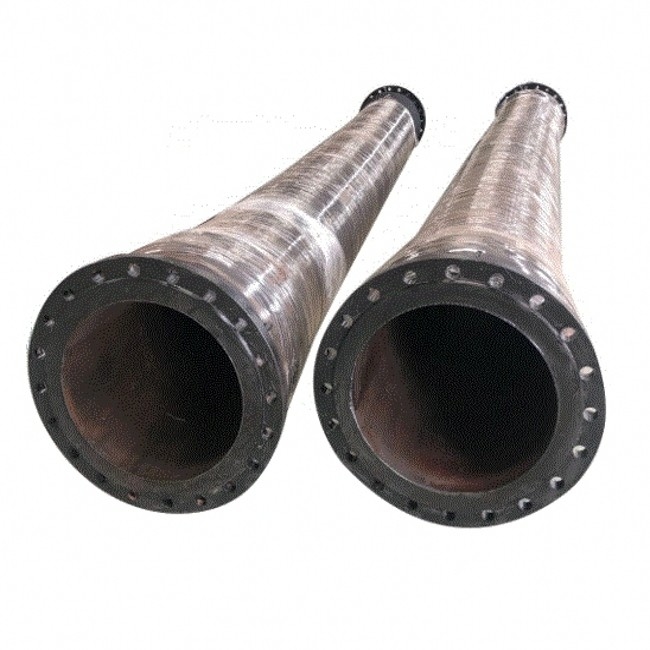

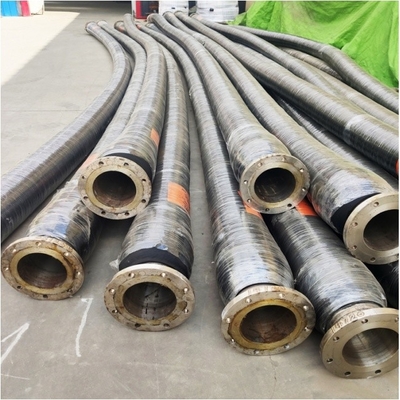

12 Inch Natural Rubber Heavy Duty Flexible Marine Hose

12 Inch Natural Rubber Dock Hose STS Heavy Duty Flexible Marine Oil Rubber Hose

Marine Oil Rubber Hose

Marine oil rubber hose refers to a ship-to-ship hose designed to transport crude oil and cargo petroleum products between ships and tankers. Our marine oil rubber hoses are fully compliant with OCIMF standards, can withstand wear and bending forces, and still have excellent performance at low temperatures. In addition, there is no risk of leaks or bumps.

Marine oil rubber hose is mainly composed of inner tube, reinforcement layer, and covering layer. The cover layer protects the main body of the hose from external corrosive environments. The reinforcing material is made of high tensile strength fabric and spiral steel wire, which can ensure that cracks will not appear under high bending angles. The inner tube is made of synthetic rubber or thermoplastic material and has oil and fuel resistance.

Marine Oil Rubber Hose Basic Construction

1. Inner tube: Synthetic rubber or thermoplastic material (NBR) with features of smoothness and resistance to oil and fuel
2. Reinforcement layer: High tensile polyester fabric with stainless steel helix embedded
3. Cover layer: CR compound rubber resistant to abrasion, seawater, and sunlight
4. Body wire: Steel wire
5. Flange :ASTM A-105 (Max. Carbon 0.25%) , ASME B16.5

Applications of Marine Oil Rubber Hose

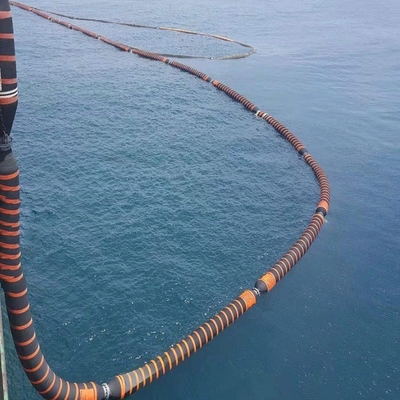

Marine oil rubber hose is widely used in transferring petroleum, crude oil, and vapours between vessels and oil tankers.

Marine Oil Rubber Hose Advantages

Fully compliant with ISO9001, marine oil rubber hose is popular with the oil industry due to its excellent performance.

• Flexible and durable
• Perform well under high pressure
• Resistant to abrasion, UV, aging, corrosion, low temperature
• Prevent water absorption
• Bear powerful tension and torsion force
• Withstand the crushing and bending force
• Easy to install and maintain

Marine Oil Rubber Hose Specifications

1. Minimum bending radius: 4 × Nominal Diameter

2. Allowable flow velocity : 21 m/sec (70 ft/sec)

3. Fluid: Crude Oil, Liquid Petroleum Products

Here are the dimensions available as below :

For further information free to contact us.
