Product Details:
|
| Brand Name: | Jerryborg | Material: | Natural Rubber |
|---|---|---|---|
| Diameter: | Customized | Length: | Customized |
| Color: | Black | Usage: | Protect Ships |
| Warranty: | 24 Months | Packing: | Nude Packing |
| High Light: | Rubber Hydro Pneumatic Fender,Submarine Hydro Pneumatic Fender,Floating Hydropneumatic Fender |
||
Floating Hydropneumatic Fender For Submarine With High Energy Absorption
Floating Hydropneumatic Fender

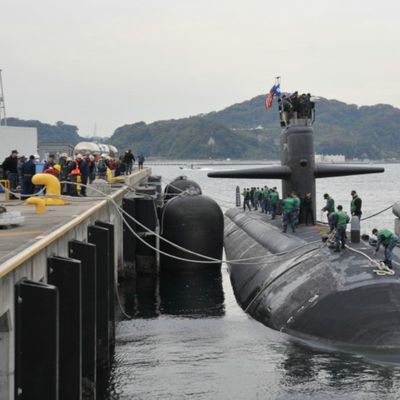

Floating Hydropneumatic fender is used in catamarans, semi-submersible platforms, and drilling rigs for a long time. This floating hydropneumatic fender is filled with water and air inside to make it vertically installed against submerged hulls with a counterweight. It’s always regarded as a buffer to reduce shock in between due to its excellent performance of great elasticity and abrasion-resistance.
Floating hydropneumatic fenders are made of natural rubber and tire cord reinforcement in the shape of cylindrical, which is strong enough to withstand external forces and severe weather conditions.
Fully compliant with the ISO17357 standard, Jerryborg’s floating hydropneumatic fender supplies with a variety of specifications and dimensions to meet customer’s requests and different application conditions.
Floating Hydropneumatic Fender Advantage
1. Absorb more energy and reduce the adverse impact on the ship
2. Adapt to the tide.
3. Safely overload.
4. Lightweight and easy to install.
5. Easy to maintain.
6. Long service life.
7. Different sizes can be customized upon customer's requirements.
Floating Hydropneumatic Fender Structure
① Outer rubber layer
This outer rubber compound is strong enough to protect the inner layer and synthetic-cord layer from the damage of external forces and severe weather conditions due to its high elasticity and abrasion resistance.
② Synthetic-tire-cord layer
The Synthetic-tire-cord layer is made of synthetic-tire-cord fabrics, compared with synthetic canvas fabric and synthetic belt fabric, this reinforcement layer performs better in fatigue-resistance and pressure-holding.
③ Inner rubber layer
The inner rubber layer is designed to seal the air inside the fender.
Floating Hydropneumatic Fender Specification Table
|
fender size (mm) |
without water 60% deflection | filled with water 45% deflection | ||||
|
energy (knm) |
reaction (kn) |
ratio water/air (%) |
energy (knm) |
reaction (kn) |
||
| 1700×7,200 | 560 | 1,810 | 65/35 | 134 | 611 | |
| 2,000×6,000 | 647 | 1,766 | 65/35 | 155 | 599 | |
| 2,500×5,500 | 928 | 2,037 | 65/35 | 223 | 687 | |
| 3,300×6,500 | 1,913 | 3,169 | 60/40 | 616 | 1,247 | |
| 3,300×10,600 | 3,120 | 5,170 | 55/45 | 589 | 1,275 | |
| standard tolerance of ±10% | ||||||
