Product Details:
|
| Material: | High Density Polyeylene | Color: | Black,etc |
|---|---|---|---|
| Brand Name: | Jerryborg | Size: | Customized Size |
| Application: | Navy Protection, Stop Ships | Port: | Qingdao Port |
| Certificate: | ISO9001: 2015 | Packing: | Nude Packing |
| Highlight: | Navy 15.24m Floating Barriers,15.24m Port Security Barrier,Tonnage Vessel Floating Barriers |
||

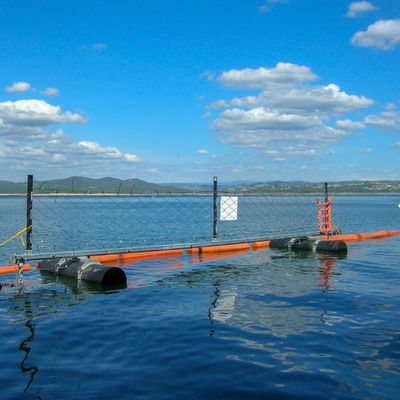

Navy Port Security Barrier Floating Harbor Offshore Barriers
Port Security Barrier Application
Port security barrier is able to stop the invasion of the ships as follows.
1.FIAC
2.BBIED
3.Multiple ships and groups attack
4.Low speed, heavy tonnage vessel
5.High speed, low tonnage vessel
6.The intruder at full speed before, during and after the impact
In addition to these applications, the PSB-T barrier system is able to stop attacks on naval bases, ships,military-strategic ammunition and fuel depots, nuclear ships/submarines, and military support facilities.
Port Security Barrier
Port security barrier is designed as a maritime barrier security system for navy military and civilian use, including PSB 5500 Port Security Barrier System, PSB 600 Port Security Barrier System, PSB-T Port Security Barrier System. Jerryborg is specializing in supplying all types of port security barriers according to customer's requests.
Port Security Barrier Specification
| type | Ultimate stopping energy | Working stopping energy |
| PSB 5500 | 9.09M ft lbf/12.33 MJ | 5.49M ft lbf/7.44 MJ |
| PSB600 | 5.90M ft lbf/7.99 MJ | 2.49 ft lbf/3.37 MJ |
| PSB-T | 5.90M ft lbf/7.99 MJ | 3.70M ft lbf/5.01 MJ |
Port Security Barrier Performance
1. Long lifespan: It has sufficient structural strength and stable performance to withstand vessels with high energy.
2. Low maintenance cost: simple system structure is suitable for easy and low-cost inspection and maintenance.
3. Easy operation: lightweight system keeping the current, wind, and wave loading lower which makes operators easier to open/close gates.
Port Security Barrier Structural System
1. The unit length of the harbor floating barrier is available of 40 ft (12.2m) or 50 ft (15.24m).
2. The pontoon is made of high-density polyethylene (HDPE) which is resistant to corrosion and UV.
3. The netting is connected to a galvanized steel beam that extends from one pontoon to the next.
4. Type and size of anchor can be selected according to engineering requirements.
5. Coastal connections and underground anchors are designed to accommodate large fluctuations in dam levels and ocean tidal cycles, large ocean currents
6. Interchangeable parts and connections
7. Gate system is customized upon the client's request
