Product Details:
|
| Material: | Natural Rubber,SBR,fabric | Product Name: | Marine Oil Hose,STS Oil Hose, Floating Oil Hose |
|---|---|---|---|
| Certificate: | ISO9001 | Application: | Industrial,fluids,water-oil Emulsions |
| Warranty: | 12 Months | Temperature Range: | -20 ℃-100℃ |
| Safety Factor: | 5:1 | Length: | 6-12m |
| Highlight: | 12m Flexible Marine Oil Hose,6m Flexible Marine Oil Hose,12m yokohama floating hose |
||

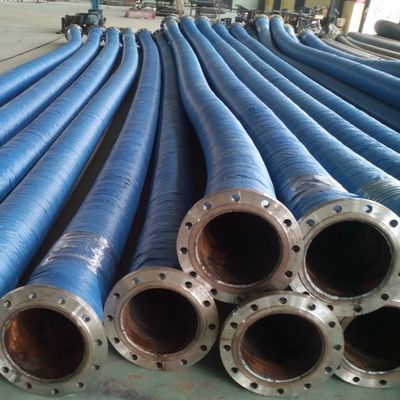

Flexible Marine Oil Hose For Ship to Ship Oil Transfer
Why choose Jerryborg marine oil hose?
Marine oil hose is widely used in safe offshore operations due to its excellent performance. It's designed to be with high-pressure strength and heavy-duty. With helix wire-free construction, the risk of permanent deformation caused by a slight vacuum during operation is absent. It's designed to be lightweight and flexible which makes it easy to install and operate. Besides, the Jerryborg marine oil hose is able to work normally at temperatures ranging from -30°C to 80°C. Jerryborg also supplies marine oil hose along with pneumatic fenders together and provides detailed installation instructions upon customer's request.
Marine Oil Hose Specification
| diameter | length |
| 6" | 6m (19.7ft) |
| 8" | 6m (19.7ft) |
| 8m (26.2ft) | |
| 10m (32.2ft) | |
| 12m (39.4ft) | |
| 10" | 8m (26.2ft) |
| 10m (32.2ft) | |
| 12m (39.4ft) | |
| 12" | 7.6m (25.0ft) |
| 9.1m (30.0ft) | |
| 10m (32.2ft) | |
| 12m (39.4ft) |
Marine Oil Hose Features
1. high tensile compounds
2. flexible and durable
3. resistance to abrasion, UV, aging, corrosion, and low temperature
4. easy installation and maintenance
5. not affected by high pressure
Marine Oil Hose Structure
Marine oil hose mainly consists of inner tube, reinforcement layer, and cover layer. The inner tube is made of synthetic rubber or thermoplastic material(NBR) with features of smooth and resistance to oil and fuel. And the reinforcement layer is composed of high tensile polyester fabric with stainless steel helix embedded. Then marine oil hose is covered by CR compound rubber resistant to abrasion, seawater, and sunlight.
For further information free to contact us.
