Product Details:
|
| Product Name: | Floating Oil Hose, Marine Oil Hose,offshore Oil Hose, Floating Rubber Oil Hose | Certificate: | OCIMF - GMPHOM 2009 |
|---|---|---|---|
| Application: | Industrial,fluids,water-oil Emulsions | Allowable Temperature: | Min. -20°C To Max. 82°C(min. -4°F To Max. 180°F) |
| Length: | 1.0m~12.0m | Warranty: | 12 Months |
| Port: | Qingdao Port | Packing: | Nude Packing |
| Highlight: | Floating Marine Oil Hose,Crude Oil Marine Oil Hose,Crude Oil Offshore Floating Hose |
||

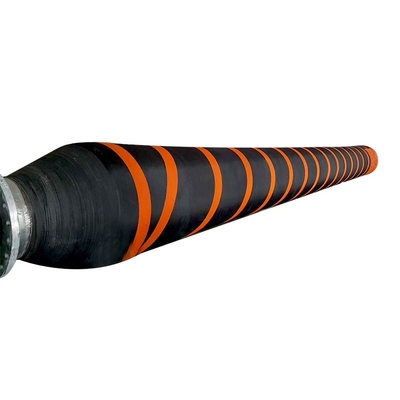

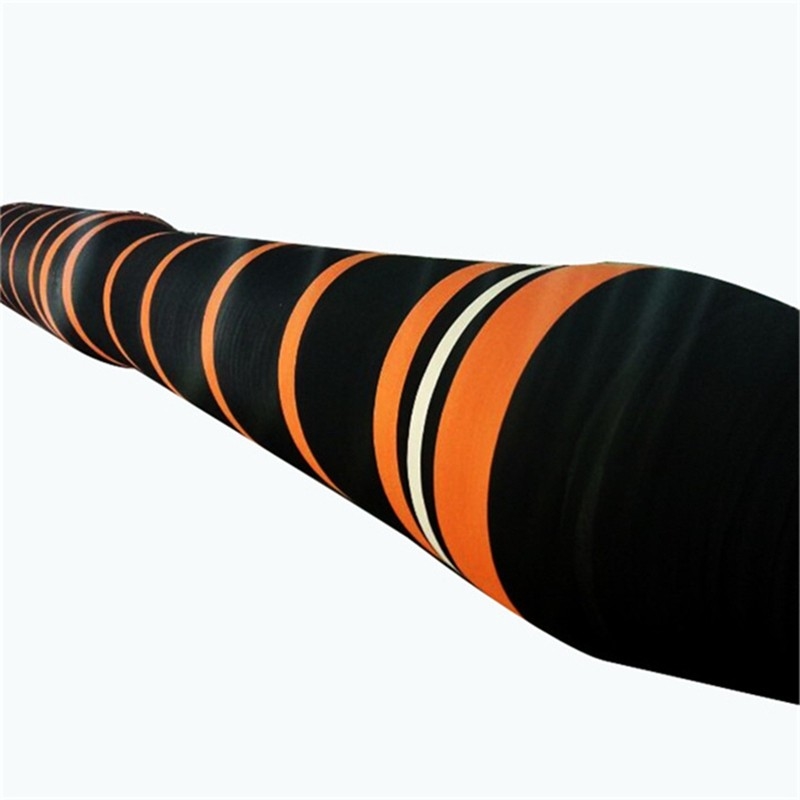

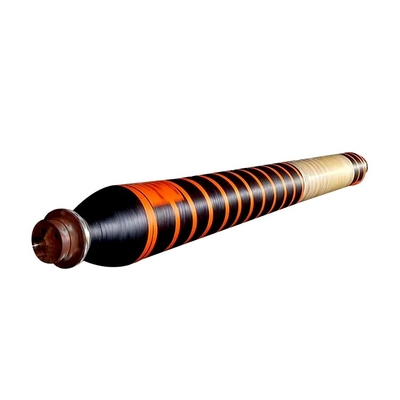

Floating Marine Oil Hose For Crude Oil Transfer Offshore Floating Hose
Marine Oil Hose
Marine oil hoses are suitable for transporting crude oil and liquid petroleum products. They feature a working temperature range from -20℃ to 82℃, the content of aromatic hydrocarbon in crude oil should not exceed 50%. Used for oil delivering between tanker and tanker, tanker and an offshore oilfield, tanker, and yard, also used in submarine oil delivery. The rated working pressure is more than 15 bar, and it can be customized for 19 bar and 21 bar ratings according to customer requirements.
Marine Oil Hose Features
Fully compliant with ISO9001, the marine oil hose is popular with the oil industry due to its excellent performance.
Marine Oil Hose Specifications
1. Minimum bending radius: 4 × Nominal Diameter
2. Allowable flow velocity : 21 m/sec (70 ft/sec)
3. Fluid: Crude Oil, Liquid Petroleum Products
Dimensions:
| diameter | length |
| 6" | 6m (19.7ft) |
| 8" | 6m (19.7ft) |
| 8m (26.2ft) | |
| 10m (32.2ft) | |
| 12m (39.4ft) | |
| 10" | 8m (26.2ft) |
| 10m (32.2ft) | |
| 12m (39.4ft) | |
| 12" | 7.6m (25.0ft) |
| 9.1m (30.0ft) | |
| 10m (32.2ft) | |
| 12m (39.4ft) |
Marine Oil Hose Applications
1) Ship-to-ship and ship-to-shore oil transportation
2) Suitable for use under more complicated working conditions
3) Can transport various oil products and aromatic products under positive and negative pressure
keywords: floating oil hose, floating rubber hose, marine floating hose
