Product Details:
|
| Material: | EVA | Color: | Orrange, Yellow, Red, Etc |
|---|---|---|---|
| Brand: | Jerryborg | Function: | STS Operation Anti-collision Fendering Device |
| Classification Society Certification: | BV, CCS, ABS, GL, LR, DVN, SGS, KR, RINA | Warranty: | 24 Months |
| Package: | Customizd | OEM: | Permitted |
| High Light: | Barrier Buoy,Marine Buoy,China Marine Buoy |
||
GL EU High Strength Barrier Buoy Durable Marine Buoy
Jerryborg mooring buoys are the most consistent performing, highest quality available today, they are especially designed to provide outstanding performance in the toughest environments, and due to their low maintenance and high pull-through strength, Jerryborg Marine Systems Mooring Buoys are rapidly replacing traditional steel mooring buoys. The buoy is constructed from closed cell rigid urethane floatation foam encapsulated with a protective layer of polyurethane elastomer around a custom designed steel column. The resilient material makes the buoys self fendering with a high impact absorption capacity.
Advantages
Impact-absorbing
Unsinkable construction
Low maintenance and corrosion-resistant construction
Lighter than conventional steel buoys
Variety of end fittings to choose from
Easy to handle
CHAIN THROUGH BUOYS
Chain through buoys have ultra heavy-duty central steel core load distribution construction, which is constructed by laminating resilient polyethylene foam. This resilient polyethylene core ensures that the buoy is completely self fendering.
| JERRYBORG CHAIN THROUGH BUOYS | ||||||||||||
| BUOY | NET | BUOY | BODY | BODY | OVERALL | THROUGH | ||||||
| MODEL | BUOYANCY | WEIGHT | DIAMETER | LENGTH | LENGTH | PIPE DIAMETER | ||||||
| LB | KG | LB | KG | FT | M | FT | M | FT | M | IN | MM | |
| JRB-20 | 2,000 | 907 | 1,257 | 570 | 3.7 | 1.1 | 5.5 | 1.7 | 7.0 | 2.1 | 13.0 | 330 |
| JRB-30 | 3,000 | 1,361 | 1,345 | 610 | 4.3 | 1.3 | 5.5 | 1.7 | 7.0 | 2.1 | 13.0 | 330 |
| JRB-40 | 4,000 | 1,814 | 1,488 | 675 | 4.5 | 1.4 | 6.2 | 1.9 | 7.7 | 2.4 | 13.0 | 330 |
| JRB-50 | 5,000 | 2,268 | 1,713 | 777 | 4.9 | 1.5 | 6.5 | 2.0 | 8.0 | 2.4 | 15.0 | 381 |
| JRB-60 | 6,000 | 2,722 | 1,852 | 840 | 5.1 | 1.6 | 7.0 | 2.1 | 8.5 | 2.6 | 15.0 | 381 |
| JRB-80 | 8,000 | 3,629 | 2,337 | 1,060 | 5.1 | 1.6 | 9.5 | 2.9 | 11.0 | 3.4 | 17.0 | 432 |
| JRB-90 | 9,000 | 4,082 | 2,556 | 1,159 | 5.6 | 1.7 | 8.6 | 2.6 | 10.0 | 3.1 | 17.0 | 432 |
| JRB-100 | 10,000 | 4,536 | 3,076 | 1,395 | 6.0 | 1.8 | 8.6 | 2.6 | 10.0 | 3.1 | 19.0 | 483 |
| JRB-120 | 12,000 | 5,443 | 3,440 | 1,560 | 5.8 | 1.8 | 10.6 | 3.2 | 12.0 | 3.7 | 19.0 | 483 |
CYLINDRICAL BUOYS
Utility cylindrical buoys have ultra heavy-duty central steel core load distribution construction, which is constructed by laminating resilient polyethylene foam. This resilient polyethylene core ensures that the buoy is completely self fendering.
| JERRYBORG CYLINDRICAL BUOYS | ||||||||||
| BUOY | BUOYANCY | BUOY | DIAMETER | HEIGHT | WORKING | |||||
| MODEL | NET | WEIGHT | OVERALL | OVERALL | LOAD | |||||
| LBS | KG | LBS | KG | FT | M | FT | M | LBS | TONS | |
| JRB-10 | 100 | 45 | 55 | 25 | 1.3 | 0.4 | 2 | 0.6 | 5,000 | 2.3 |
| JRB-20 | 200 | 90 | 65 | 29 | 1.5 | 0.5 | 2.5 | 0.8 | 5,000 | 2.3 |
| JRB-30 | 300 | 136 | 90 | 41 | 1.7 | 0.5 | 2.7 | 0.8 | 5,000 | 2.3 |
| JRB-50 | 500 | 227 | 130 | 59 | 2.0 | 0.6 | 2.0 | 0.6 | 7,500 | 3.4 |
| JRB-100 | 1,000 | 454 | 200 | 91 | 2.4 | 0.7 | 4.0 | 1.2 | 10,000 | 4.5 |
| JRB-150 | 1,500 | 680 | 240 | 109 | 2.7 | 0.8 | 5.0 | 1.5 | 10,000 | 4.5 |
| JRB-200 | 2,000 | 907 | 440 | 200 | 3.1 | 0.9 | 5.2 | 1.6 | 20,000 | 9.1 |
| JRB-250 | 2,500 | 1,134 | 600 | 272 | 3.5 | 1.1 | 5.5 | 1.7 | 20,000 | 9.1 |
| JRB-300 | 3,000 | 1,361 | 800 | 363 | 4.0 | 1.2 | 6.0 | 1.8 | 20,000 | 9.1 |
| JRB-400 | 4,000 | 1,814 | 970 | 440 | 4.5 | 1.4 | 6.2 | 1.9 | 40,000 | 18.0 |
| JRB-500 | 5,000 | 2,268 | 1,320 | 599 | 4.7 | 1.5 | 6.2 | 1.9 | 40,000 | 18.0 |
| JRB-600 | 6,000 | 2,722 | 1,740 | 789 | 5.0 | 1.6 | 6.6 | 2.0 | 40,000 | 18.0 |
PICK-UP BUOYS
Pick-up buoys have ultra heavy-duty central steel core load distribution construction, which is constructed by laminating resilient polyethylene foam. This resilient polyethylene core ensures that the buoy is completely self fendering.
| JERRYBORG PIKE-UP BUOYS | ||||||
| Buoy type | Buoyancy (kg) | Length of body (mm) | Length overall (mm) | Diameter (mm) | SWL (tonne) |
Weight in air (kg) |
| JRB 90 | 90 | 665 | 1000 | 515 | 1.2 | 42 |
| JRB 225 | 225 | 914 | 1570 | 690 | 16 | 120 |
| JRB 400 | 400 | 914 | 1570 | 900 | 16 | 155 |
| JRB 800 | 800 | 914 | 1570 | 1150 | 16 | 180 |

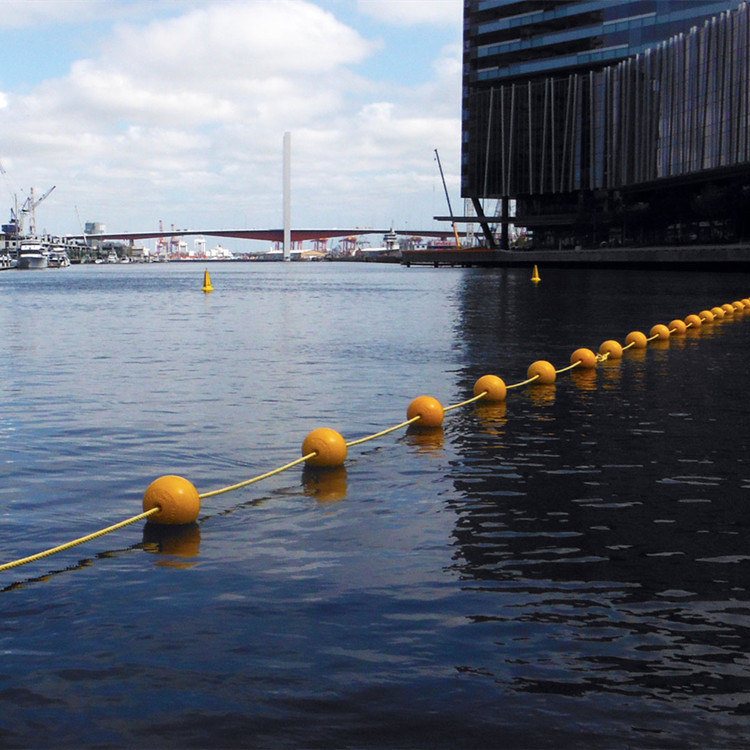

BARRIER BUOYS
Barrier buoys have ultra heavy-duty central steel core load distribution construction, which is constructed by laminating resilient polyethylene foam. This resilient polyethylene core ensures that the buoy is completely self fendering.
| JERRYBORG BARRIER BUOYS | ||||
| Item |
Inner diameter (mm) |
Outer diameter (mm) |
Length (mm) |
Buoyancy (kg) |
| JRB250*600 | 250 | 600 | 22 | |
| JRB300*600 | 65/85/110/125 | 300 | 600 | 35 |
| JRB360*410 | 50 | 360 | 410 | 35 |
| JRB360*450 | 50 | 360 | 450 | 35 |
| JRB300*1000 | 30 | 300 | 1000 | 60 |
| JRB300*1070 | 125 | 300 | 1000 | 50 |
| JRB500*750 | 60 | 500 | 750 | 90 |
| JRB450*900 | 150 | 450 | 900 | 120 |
| JRB460*900 | 175 | 450 | 900 | 120 |
| JRB500*800 | 150/180/200/250 | 500 | 800 | 130 |
| JRB550*900 | 280 | 550 | 900 | 190 |
| JRB700*800 | 320/360 | 700 | 800 | 220 |
| JRB600*1000 | 30/110 | 600 | 1000 | 220 |
| JRB600*1000 | 300 | 600 | 1000 | 200 |
| JRB1000*1000 | 320/380 | 1000 | 1000 | 620 |
| JRB800*1100 | 30/60/400/500 | 800 | 1100 | 520 |
| JRB1100*1100 | 500 | 1100 | 1100 | 750 |
| JRB1100*1400 | 220 | 1100 | 1400 | 1200 |
| JRB1050*2000 | 800 | 1050 | 2000 |
1500 |
Material
100% closed cell macromolecule elastic foam
They mainly are 100% closed cell EVA foam, according to targeted use. EVA foams are resilient, closed cells to avoid water absorption and are producted either by rolls or blocks. Those elements are glued or thermobounded to constitute monolithic cocon or core, then tooled to requested shape before being encapsulated by tough reinforced SPUA coating matrix as here under.
Technical reinforcement cord fabric
They are applied according to building rules of soft composites reinforcement to strengthen the “matrix” and constitute the encapsulating coating for Jerryborg’s fenders, buoys and floats, etc. The main reinforcement fabric in Jerryborg is 1480dtex/3 chinlon tyre cord, which is widely used in pneumatic fender and tire products.
Company profile
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Jerryborg Marine Machinery Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Jerryborg Marine Machinery Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with partners from all over the world.
Production Facilities
Could you tell me more details about this type of product?
Our buoys product range have a broad range of sizes and depths. The buoys consist of a unit, and are adapted for use where the need for buoyancy is limited.
