High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy

Certification
China Qingdao Jerryborg Marine Machinery Co., Ltd certification
China Qingdao Jerryborg Marine Machinery Co., Ltd certification
Customer Reviews
I’m late in sending this, but wanted to thank Jerryborg Marine for the great job they did on the pneumatic fenders that they fabricated for me. They work perfectly and serve a long time. Very glad I found them.

—— Deepark-Dolphine Rubber

The guys over at Jerryborg Marine not only provided quick estimates, an honest timetable, and professional courtesy, but also quality work that exceeds their fair pricing. I recommend them for anyone's next project.

—— Thanh Dong-Vietnam Ecomarine

I choose Jerryborg Marine because I simply could not find any other provider that offered all the marine products I needed under one platform, such as pneumatic fenders, anchors, chains, steel wire ropes, shackles.

—— Alessandro Bitocchi-PSG AB

I have a problem with products from another vendor. The engineer of Jerryborg Marine is very enthusiastic and helps me a lot to solve the problem. I really appreciate their professional work and experts team.

—— Peter.S-USA Offshore Rental

I'm Online Chat Now

High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy

High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy
High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy

Large Image :  High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy

Product Details:
Place of Origin: Shandong, China
Brand Name: Jerryborg
Certification: ISO: 9001-2015
Model Number: JRB-PF
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: as per customer requirement
Delivery Time: 10-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per year

High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy

Description
Material: EVA Color: Navy Grey, Red, Yellow, Etc
Brand: Jerryborg Function: STS Operation Anti-collision Fendering Device
Classification Society Certification: BV, CCS, ABS, GL, LR, DVN, SGS, KR, RINA Warranty: 24 Months
Package: Customizd OEM: Permitted
High Light:

eva foam filled buoy

,

Foam mooring buoy

,

Mooring Buoy



High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy

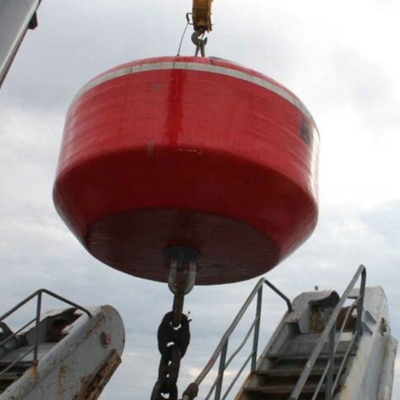

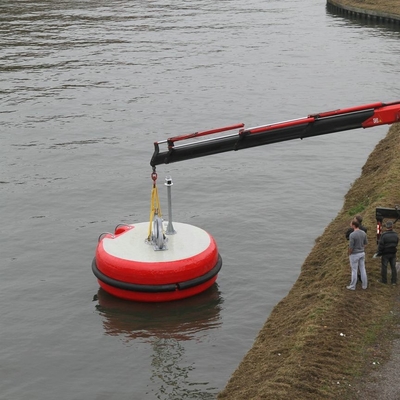

Mooring buoy is a sealed buoy provided on the water for mooring ships. It consists of a buoy, an anchor chain and an anchor. The pontoon is fixed on the water surface by anchor chains and anchors. The pontoon has mooring rings and steel shackles for mooring of the ship. A special mooring boat assists the ship in mooring. In the case of single buoy mooring, the ship will drift around the pontoon due to wind and current. For this reason, double buoys are used for mooring in the port, that is, one buoy is attached to each of the head and tail cables, and the ship can be stabilized on the surface.



High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy 0



Advantages



  • Impact-absorbing
  • Unsinkable construction
  • Low maintenance and corrosion-resistant construction
  • Lighter than conventional steel buoys
  • Variety of end fittings to choose from
  • Easy to handle

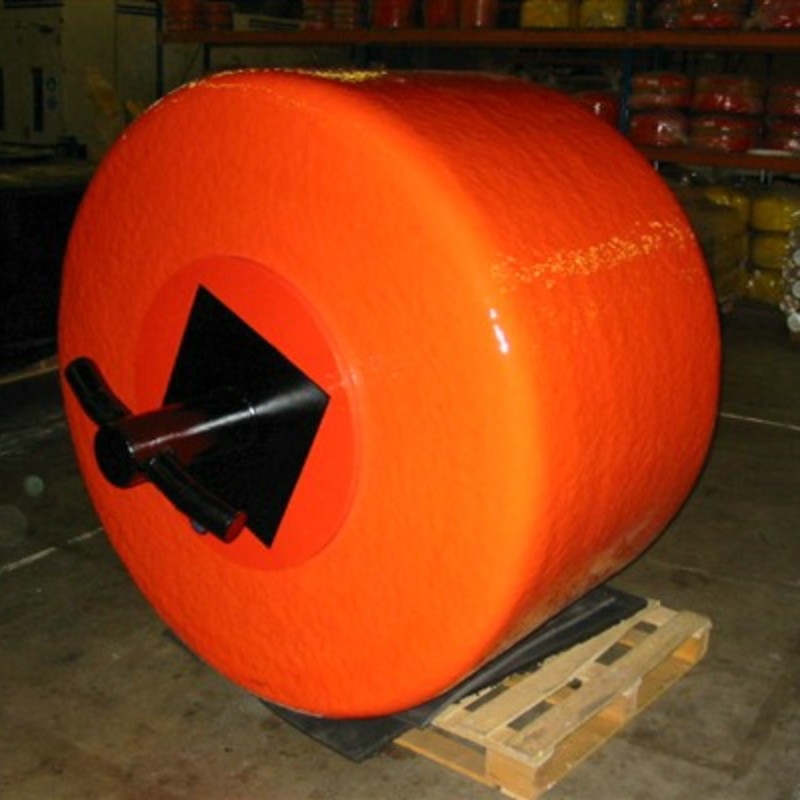

PENDANT BUOYS



High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy 1

Pendant buoys have ultra heavy-duty central steel core load distribution construction, which is constructed by laminating resilient polyethylene foam. This resilient polyethylene core ensures that the buoy is completely self fendering.


JERRYBORG PENDANT BUOYS
BUOY BUOYANCY BUOY DIAMETER BUOY HEIGHT WORKING
MODEL NET WEIGHT OVERALL LENGTH OVERALL LOAD
  LBS KG LBS KG FT M FT M FT M FT TONS
JRB-25 5,511 2,500 1,223 555 4.5 1.4 6.8 2.1 7.3 2.2 150,000 68
JRB-50 11,023 5,000 2,123 963 6.0 1.8 7.2 2.2 8.7 2.7 150,000 68
JRB-75 16,534 7,500 3,184 1,444 6.5 2.0 9.2 2.8 9.2 2.8 150,000 68
JRB-100 22,046 10,000 4,197 1,904 7.0 2.1 11.0 3.4 9.9 3.0 150,000 68
JRB-150 33,069 15,000 5,351 2,427 8.0 2.4 12.0 3.7 10.9 3.3 150,000 68
JRB-200 44,092 20,000 7,152 3,244 8.6 2.6 13.6 4.1 11.5 3.5 200,000 91
JRB-250 55,115 25,000 9,312 4,224 9.4 2.9 13.7 4.2 12.3 3.7 200,000 91
JRB-300 66,138 30,000 11,175 5,069 10.0 3.0 14.5 4.4 12.9 3.9 200,000 91
JRB-350 77,160 35,000 13,037 5,914 10.3 3.1 16.0 4.9 13.3 4.1 250,000 114
JRB-400 88,183 40,000 14,899 6,758 10.4 3.2 18.0 5.5 13.4 4.1 250,000 114



































MODULAR ANCHOR PENDANT BUOYS

High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy 2

Modular anchor pendant buoys are removable and interchangeable buoyancy modules, which have ultra heavy duty central steal core construction constructed by laminating resilient polyethylene foam. This resilient polyethylene core ensures that the buoy is completely self fendering.





JERRYBORG MODULAR ANCHOR PENDANT BUOYS
BUOY BUOYANCY NUMBER DIAMETER THROUGH
MODEL NET OF OVERALL PIPE DIAMETER
  LBS KG MODULES FT M IN MM
JRB-4 8,818 4,000 2 6.6 2.0 6.0 152
JRB-8 17,637 8,000 4 6.6 2.0 6.0 152
JRB-8 17,637 8,000 2 7.5 2.3 6.0 152
JRB-16 35,273 16,000 4 7.5 2.3 6.0 152
JRB-11 24,250 11,000 2 9.8 3.0 8.0 203
JRB-22 48,501 22,000 4 9.8 3.0 8.0 203
JRB-17 37,478 17,000 2 10.5 3.2 10.0 254
JRB-34 74,956 34,000 4 10.5 3.2 10.0 254
JRB-23 50,705 23,000 2 10.5 3.2 10.0 254
JRB-46 101,411 46,000 4 10.5 3.2 10.0 254































Material



100% closed cell macromolecule elastic foam



They mainly are 100% closed cell EVA foam, according to targeted use. EVA foams are resilient, closed cells to avoid water absorption and are producted either by rolls or blocks. Those elements are glued or thermobounded to constitute monolithic cocon or core, then tooled to requested shape before being encapsulated by tough reinforced SPUA coating matrix as here under.

High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy 3

Technical reinforcement cord fabric



They are applied according to building rules of soft composites reinforcement to strengthen the “matrix” and constitute the encapsulating coating for Jerryborg’s fenders, buoys and floats, etc. The main reinforcement fabric in Jerryborg is 1480dtex/3 chinlon tyre cord, which is widely used in pneumatic fender and tire products.

High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy 4

General application area



1.Marine fenders for ship ,vessel,dock and so on;
2.Marine buoy/navigation buoy/mooring buoy/aquaculture floating ball/net floating ball/swiming pool buoy;
3.Other application area also available.













Company profile



High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy 5



Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Jerryborg Marine Machinery Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.



With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Jerryborg Marine Machinery Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with partners from all over the world.



Production Facilities





High Energy Absorption BV Pendant EVA Foam Buoy Marine Mooring Buoy 6



FAQ



Why choose your company?



Jerryborg insists customers requirement first since founded,supply the most professional solution to meet customer's personalized requirements. And we pay great attention to quality control, high reliability is our design principle, quality control starts from beginning, high quality parts,advanced technology and equipment are used, products are designed,manufactured and tested as ISO9001:2015 requirements. All procedures are strictly controlled and completely meet requirements of ship surveyors such as CCS, BV, RS, ABS, LR, etc.



What are Jerryborg's highlights?



We provide all types of fenders, such as Super Cell Fender, Super Cone Fender, Arch Fender, Cylindrical Fender, D Type Fender, etc. We also offer clients with a design of a complete fender system and installation for port facility.



What are the selling points about your products?



A superior fender product can protect both the vessel and the berthing structure berthed against, preventing any damage and save on repair costs.Our rubber fenders are manufactured in accordance with PIANC guidelines and come in a range of compounds to suit various applications. In addition, Jerryborg can produce according to drawings and provide technical advisory services free of charge.



Could you tell me more details about this type of product?



Our buoys product range have a broad range of sizes and depths. The buoys consist of a unit, and are adapted for use where the need for buoyancy is limited.
