CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy

Certification
China Qingdao Jerryborg Marine Machinery Co., Ltd certification
China Qingdao Jerryborg Marine Machinery Co., Ltd certification
Customer Reviews
I’m late in sending this, but wanted to thank Jerryborg Marine for the great job they did on the pneumatic fenders that they fabricated for me. They work perfectly and serve a long time. Very glad I found them.

—— Deepark-Dolphine Rubber

The guys over at Jerryborg Marine not only provided quick estimates, an honest timetable, and professional courtesy, but also quality work that exceeds their fair pricing. I recommend them for anyone's next project.

—— Thanh Dong-Vietnam Ecomarine

I choose Jerryborg Marine because I simply could not find any other provider that offered all the marine products I needed under one platform, such as pneumatic fenders, anchors, chains, steel wire ropes, shackles.

—— Alessandro Bitocchi-PSG AB

I have a problem with products from another vendor. The engineer of Jerryborg Marine is very enthusiastic and helps me a lot to solve the problem. I really appreciate their professional work and experts team.

—— Peter.S-USA Offshore Rental

I'm Online Chat Now

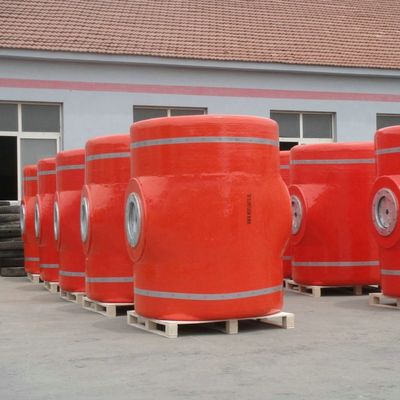

CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy

CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy
CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy

Large Image :  CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy

Product Details:
Place of Origin: Shandong, China
Brand Name: Jerryborg
Certification: ISO: 9001-2015
Model Number: JRB-PF
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: as per customer requirement
Delivery Time: 10-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per year

CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy

Description
Material: EVA Color: Black, White, Navy Grey, Red, Etc
Brand: Jerryborg Function: STS Operation Anti-collision Fendering Device
Classification Society Certification: BV, CCS, ABS, GL, LR, DVN, SGS, KR, RINA Warranty: 24 Months
Package: Customizd OEM: Permitted
High Light:

Modular Pendant Buoy

,

China Modular Pendant Buoy

,

anchor Polyurethane Buoy



High Quality China Modular Pendant Buoy for Ship Marine Polyurethane Buoy



Product Introduction



Jerryborg mooring buoys are the most consistent performing, highest quality available today.



CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy 0

Jerryborg mooring buoys are especially designed to provide outstanding performance in the toughest environments, and due to their low maintenance and high pull-through strength, Jerryborg Marine Systems Mooring Buoys are rapidly replacing traditional steel mooring buoys.



The buoy is constructed from closed cell rigid urethane floatation foam encapsulated with a protective layer of polyurethane elastomer around a custom designed steel column. The resilient material makes the buoys self fendering with a high impact absorption capacity.



Advantages



Impact-absorbing

Unsinkable construction

Low maintenance and corrosion-resistant construction

Lighter than conventional steel buoys

Variety of end fittings to choose from

Easy to handle



MODULAR ANCHOR PENDANT BUOYS

CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy 1



Standard Modular Anchor Pendant buoys consist of removable, interchangeable modules with discrete end modules and center modules assembled onto central steelwork and fixed in position with retaining flanges, making up buoys ranging from 1Te to 100Te nett buoyancy.



This system allows for the number of center modules to vary according to the nett buoyancy required. By adding or subtracting the center modules, buoys can be redeployed on future projects, making them a viable and cost effective option.



Each module is manufactured from a high performance, low density rigid polyurethane foam core, totally encapsulated within a rigid polymer skin. The polyurethane core is lightweight and closed cell in nature and will not absorb water even if the skin is punctured. The modules are for surface use only and should not be submerged and subjected to hydrostatic pressure.



JERRYBORG MODULAR ANCHOR PENDANT BUOYS
BUOY BUOYANCY NUMBER DIAMETER THROUGH
MODEL NET OF OVERALL PIPE DIAMETER
  LBS KG MODULES FT M IN MM
JRB-4 8,818 4,000 2 6.6 2.0 6.0 152
JRB-8 17,637 8,000 4 6.6 2.0 6.0 152
JRB-8 17,637 8,000 2 7.5 2.3 6.0 152
JRB-16 35,273 16,000 4 7.5 2.3 6.0 152
JRB-11 24,250 11,000 2 9.8 3.0 8.0 203
JRB-22 48,501 22,000 4 9.8 3.0 8.0 203
JRB-17 37,478 17,000 2 10.5 3.2 10.0 254
JRB-34 74,956 34,000 4 10.5 3.2 10.0 254
JRB-23 50,705 23,000 2 10.5 3.2 10.0 254
JRB-46 101,411 46,000 4 10.5 3.2 10.0 254





Material



100% closed cell macromolecule elastic foam



They mainly are 100% closed cell EVA foam, according to targeted use. EVA foams are resilient, closed cells to avoid water absorption and are producted either by rolls or blocks. Those elements are glued or thermobounded to constitute monolithic cocon or core, then tooled to requested shape before being encapsulated by tough reinforced SPUA coating matrix as here under.

CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy 2

Technical reinforcement cord fabric



They are applied according to building rules of soft composites reinforcement to strengthen the “matrix” and constitute the encapsulating coating for Jerryborg’s fenders, buoys and floats, etc. The main reinforcement fabric in Jerryborg is 1480dtex/3 chinlon tyre cord, which is widely used in pneumatic fender and tire products.

CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy 3





Company profile



CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy 4



Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Jerryborg Marine Machinery Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.



With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Jerryborg Marine Machinery Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with partners from all over the world.



Production Facilities





CCS High performance Lightweight Polyurethane Foam Anchor Modular Pendant Mooring Buoy 5



FAQ



1. Why choose your company?



Jerryborg insists customers requirement first since founded,supply the most professional solution to meet customer's personalized requirements. And we pay great attention to quality control, high reliability is our design principle, quality control starts from beginning, high quality parts,advanced technology and equipment are used, products are designed,manufactured and tested as ISO9001:2015 requirements. All procedures are strictly controlled and completely meet requirements of ship surveyors such as CCS, BV, RS, ABS, LR, etc.



2. What are Jerryborg's highlights?



We provide all types of fenders, such as Super Cell Fender, Super Cone Fender, Arch Fender, Cylindrical Fender, D Type Fender, etc. We also offer clients with a design of a complete fender system and installation for port facility.



3. What are the selling points about your products?



A superior fender product can protect both the vessel and the berthing structure berthed against, preventing any damage and save on repair costs.Our rubber fenders are manufactured in accordance with PIANC guidelines and come in a range of compounds to suit various applications. In addition, Jerryborg can produce according to drawings and provide technical advisory services free of charge.



Could you tell me more details about this type of product?



Our buoys product range have a broad range of sizes and depths. The buoys consist of a unit, and are adapted for use where the need for buoyancy is limited.
