Product Details:
|
| High Strength: | Submarine Fender | Certificate: | BV,EU,BV,GL,SBS |
|---|---|---|---|
| Application: | Submarine Protection | Color: | Black, Grey |
| Advantage: | Air Tightness | Feature: | High Strength |
| Keyword: | Dock Bumper | Diameter: | 500 - 4 500mm |
| Length: | 1 000 - 12 000mm | Material: | Rubber |
| Highlight: | Pure rubber fender,Submarine Rubber Fender,Marine Fender |
||

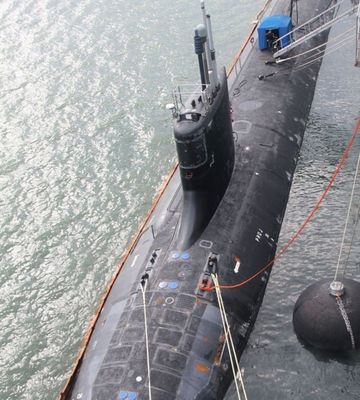

Submarine rubber fender, also called the hydropneumatic fender, is a kind of pneumatic rubber fender that design for submarine or vessels,semi-submersible and drilling rigs,.It is filled with air and some water to keep it standing vertical in the ocean so that it can protect submarine in the vertical plane.
Hydro-pneumatic rubber fender also made up by rubber and synthetic-tyre-cord, and also has outer rubber,layer-cord and inner rubber.It is also been vulcanized together to withstand tension and pressure and other forces.
Outer rubber: Cover outside of the fender to protect cord layer and inner rubber from other external forces. It has high tensile resistance,tear resistance and wear resistance.
Synthetic-tyre-cord: Maintain the internal air pressure of the fender and strengthen the strength of fender. It can make fenders be more pressure-resistant and small deformation.
Inner rubber: Seals the pressurized air inside the fender to prevent air leakage. It can also keep the inner pressure of the fender.
The size of our submarine pneumatic fender could be customized according to customer's requirement, here are some examples for you to refer to.
Technical Parameter
| Fender Size | Reaction(KN) | Energy Absorption(KNm) | Weight(Kg) |
| 500×1000 | 64 | 6 | 23 |
| 600×1000 | 74 | 8 | 28 |
| 700×1000 | 137 | 17 | 58 |
| 1000×1500 | 182 | 32 | 82 |
| 1000×2000 | 257 | 45 | 148 |
| 1200×2000 | 297 | 63 | 167 |
| 1350×2500 | 427 | 102 | 220 |
| 1500×2500 | 499 | 134 | 270 |
| 1500×3000 | 579 | 153 | 318 |
| 1700×3000 | 639 | 191 | 380 |
| 2000×3500 | 875 | 308 | 580 |
| 2000×4000 | 1000 | 352 | 680 |
| 2500×4000 | 1381 | 663 | 1064 |
| 2500×5500 | 2019 | 1131 | 1268 |
| 3000×5000 | 2422 | 1357 | 1980 |
| 3000×6000 | 2906 | 1293 | 2400 |
| 3300×4500 | 1884 | 1175 | 2380 |
| 3300×6500 | 3015 | 1814 | 2980 |
Model Selection for Large-tonnage Ship
|
Fender Size D×L (m) |
Ship Tonnage (DWT) |
Assumed Boarding Speed (M/S) |
Effective Kinetic Energy (KN.M) |
| 3.3×6.5 | 200000 | 0.15 | 1890 |
| 3.3×6.5 | 150000 | 0.15 | 1417 |
| 3.0×5.0 | 100000 | 0.15 | 945 |
| 3.0×6.0 | 85000 | 0.17 | 1031 |
| 2.5×5.5 | 50000 | 0.18 | 680 |
| 2.5×5.5 | 40000 | 0.20 | 672 |
| 2.5×4.0 | 30000 | 0.22 | 609 |
| 2.5×4.0 | 20000 | 0.25 | 525 |
| 2.5×4.0 | 15000 | 0.26 | 425 |
| 2.0×4.0 | 10000 | 0.28 | 329 |
| 2.0×3.5 | 5000 | 0.33 | 228 |
Model Selection for Small and Middle Size Ship
|
Fender recommendation size D×L (m) |
Ship Type | Ship Tonnage(T) |
| 0.5×1.0 | Fishing ship | 50 |
| 0.7×1.5~1.0×1.5 | Fishing ship | 100 |
| 1.0×1.5~1.2×2.0 | Fishing ship,towing ship | 200 |
| 1.2×2.0~1.5×2.5 | Fishing ship,towing ship | 300~500 |
| 1.5×2.5~1.5×3.0 | Towing ship,cargo ship | 1000 |
| 2.0×3.0~2.0×3.5 | Cargo ship,ocean trawler | 3000 |
| 2.0×3.5~2.5×4.0 | Cargo ship | 10000 |
1. Strong wear resistance;
2. Large compression deformation;
3. Low reaction force, high energy absorption;
4. Easy installation and long lifespan;
5. Anti-collision.
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Jerryborg Marine Machinery Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services,specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities
and well-equipped checkoutequipment, Qingdao Jerryborg Marine Machinery Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with partners from all over the world.
1. "Are you factory or trading company?"
Answer: We are manufacturer located in Qingdao and have about 10 years of experience in this field.
2. "What's the warranty period of your sling pneumatic rubber fender?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new pneumatic rubber fender for you if it proved to be our quality problem.
3. "What's the MOQ of your pneumatic rubber fender?"
Answer: Our MOQ is 1PC.
4. "What kind of certificate can you provide?"
Answer: DNV,GL,CCS,BV,LR.
